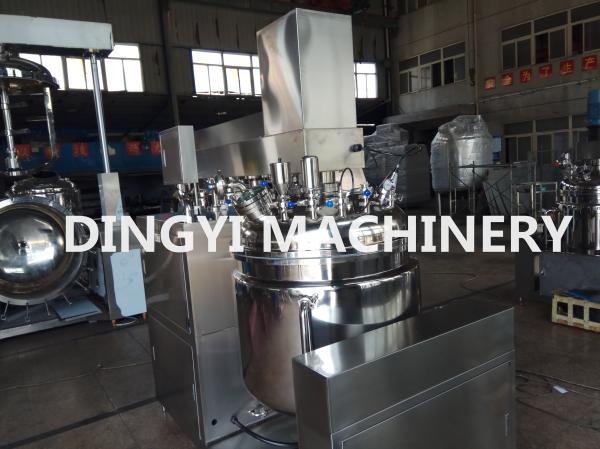

Hair Conditioner ZRJ-500-Q vacuum emulsifying mixer steam heating SS316L

Product description

1. Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.

2. Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped is including high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.

3. With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.

4. Scraping unit is with moveable Teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The Teflon scrapers are maintained manually and easily without any tool.

· Capacity:500L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:
· Slow mixer 10-40rpm with PTFE scraper
· Homogenizer 1150-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
