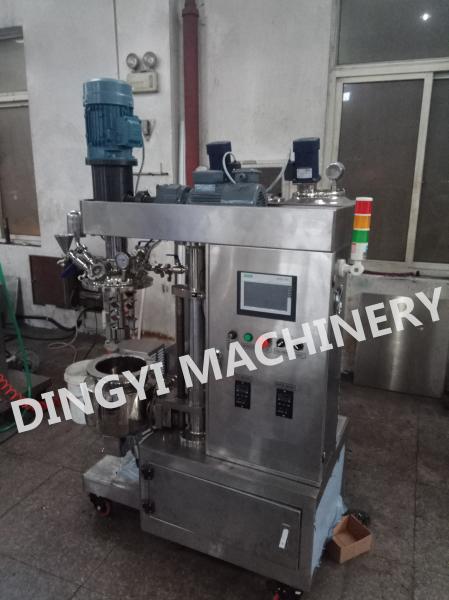

5L stainless steel 316L HMI Vacuum homogenizer mixer for Lab

Product description
Vacuum toothpaste mixer as a semi solid equipment are suitable for the pharmaceutical & cosmetic industries for making cream, ointment, lotion, soft gel, toothpaste, hair color.

5L stainless steel 316L HMI Vacuum homogenizer mixer for Lab is professionally designed according to the cream manufacturing process of cosmetics and pharmaceutical etc. Products though introducing advanced technology from foreign. The machine is composed of pre-treating tank, main tank, vacuum pump, hydraulic system, tilting system, electric control system and work platform etc. The machine is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning , reasonable structure, small land area and high automatic degree etc.

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.093Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
