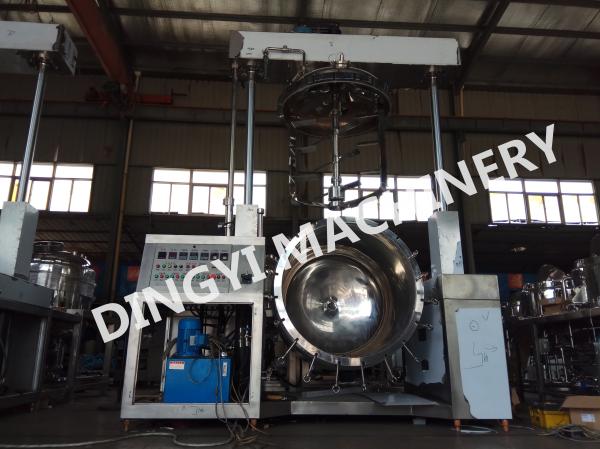

steam heating 600L SS316L HMI vacuum homogenizer for ointment

Product description

HMI vacuum homogenizer is constantly improved on introducing into the German and Japan technology. It is manufactured for the cosmetic and ointment. The machine is made up with the pre-mixing tanks, main tank, water ring type vacuum pump, hydraulic pressure and electrical control system.

Features

1. Rotors and stators are Precision machined parts, good and tightly matched

2. Stable operation, low noise, easy cleaning and continuous running

3. Hydraulic lifting, stable and safe

4. Vacuum/pressure/Ex-proof type for customization

Vacuum Emulsifying Machine is suitable for pharmaceutical factory to making ointment. It is including machine tank, oil tank, water tank, also with double jacket for heating. it can discharge from bottom valve.

· Capacity:600L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
