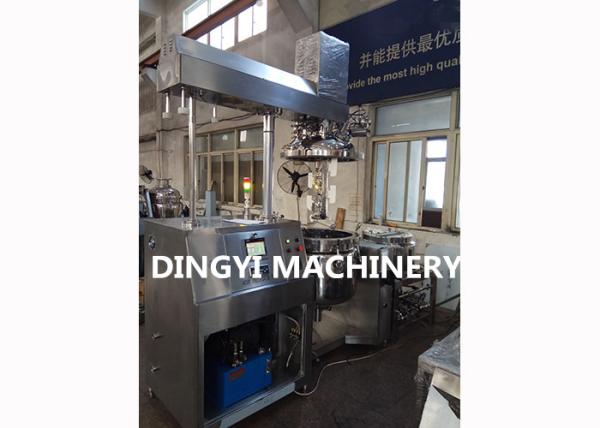

stainless steel 316L fat emulsion Vacuum Emulsifying Machine HMI control

Product description

Working process
The rotor revolves in high speed produces centrifugal force, which suctions the material from upper and lower feeding area axially to the operation chamber.
The strong centrifugal force throws the material axially to the narrow slot between stator and rotor. The material then receives centrifugal press, clash and other forces, which firstly disperse and emulsify the material.

The controlling system adopts electric control system, stable and simple to manage.
The triple mixing adopts the Panasonic frequency converter for speed adjustment, which can meet different technological demands.
The homogenizing structure made through Japan technology adopts the good mechanical seal. The Max. emulsifying rotation speed can reach 3500rpm.
The vacuum de-foaming can make the materials meet the requirement of being aseptic.
Tank body welded by imported 3-layer stainless steel plate.Tank body and pipes adopt mirror polishing, conforming to cGMP.
The tank body can heat or cool materials .Heating modes include steam heating or electric heating.
· Capacity:5L-2000L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
Vacuum emulsifying equipment including:
· Vacuum emulsifying main machine
· Pre-mixing tank for sugar
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.093Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
