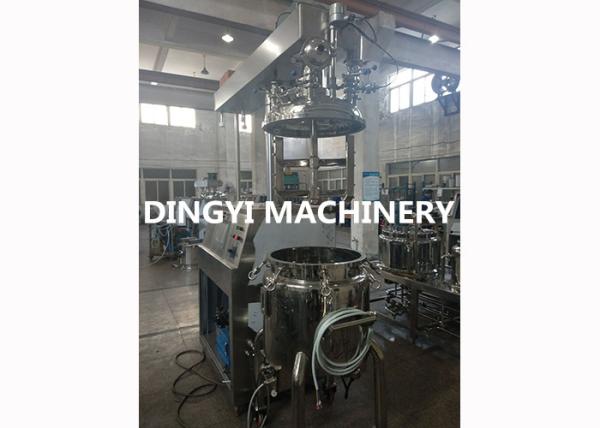

200L stainless steel Vacuum Emulsifying Machine with button control and steam heating

Product description

Batch high shear emulsifier effectively, quickly and evenly disperse a phase or phases to another consecutive phase, usually, these phases are dissolvable to each other.

The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore, the material in the narrow slot among stator and rotor receives strong forces from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction, clashing, tearing and rush water.

The dissolvable solid, liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate additives and finally products with stable high quality are made.

Vacuum emulsifying mixer series High shear homogenizer adopt most advanced technology for rotor and stator precise positioning, which is the core technology for emulsifying effect. The whole machine system adopts hydraulic lift style, frequency converter speed adjusting system, easy to operation and maintenance. The bi-direction material absorption system makes good homogenizing effect. This model is widely used in liquid chemical, cosmetics, food beverage, papermaking, daily products industry.

Vacuum emulsifying main machine:
· Slow mixer 10-40rpm with PTFE scraper
· Homogenizer 1150-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
