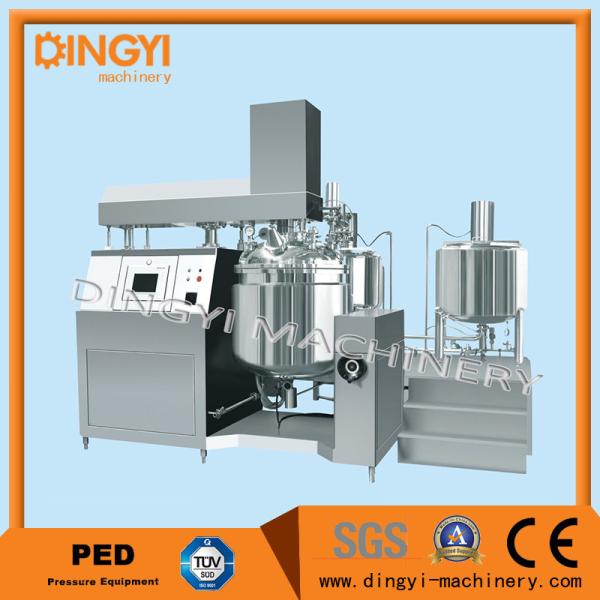

Vacuum Emulsifying mixer

Product description

Vacuum Emulsifying Mixer use SS316L stainless steel and In the tank, there are 3 mixers:

1 Cutting and vortex emulsify mixer: 11kw, 0-3500 rpm (frequency control)

2 Low-speed frame type scraping mixer: 3.7kw, 0-40 rpm (frequency control)

3 The motor of Low-speed converse mixer and low-speed frame type scraping mixer is the same one with speed 0-40rpm.

4 Attached units of the tank: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, temperature sensor, CIP cleaning head, discharging hole, dustproof asepsis respiratory device.

Vacuum Emulsifying Machine is suitable for pharmaceutical factory to making ointment. It is including machine tank, oil tank, water tank, also with double jacket for heating. it can discharge from bottom valve.

· Capacity:750L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
