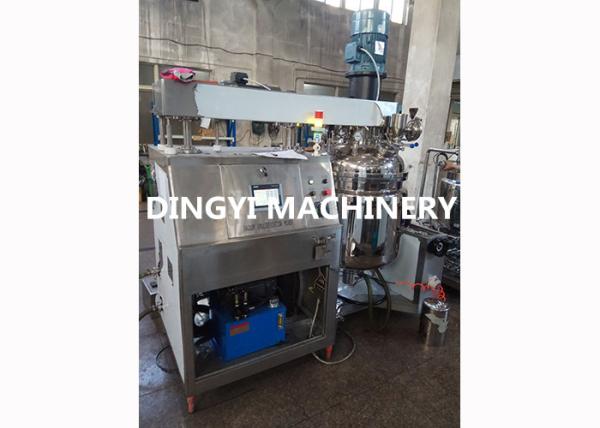

100L stainless steel 316L Jet type Vacuum Emulsifying Machine for lotion

Product description

Vacuum Emulsifying Machine for lotion paste cream toothpaste ointment

Introduction

Vacuum homogeneous emulsifying, refers to the material in the vacuum state, the use of high shear emulsifying machine and efficient, fast, evenly apply one or multiple phase distribution to another, often under the condition of each phase (e.g., oil phase and water phase) are incompatible. Its strong use mechanical kinetic energy, make the material in the set, the rotor in the narrow gap hydraulic shear of dozens of ten thousand beats per minute, the centrifugal extrusion, collision combination such as flow, so that don't mix phase in the corresponding mature technology and a moderate amount of additives, under the joint action of instantaneous evenly dispersed emulsion, through the cycle of high frequency to the complex, end up with no bubble, exquisite and stable high quality finished product.

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
