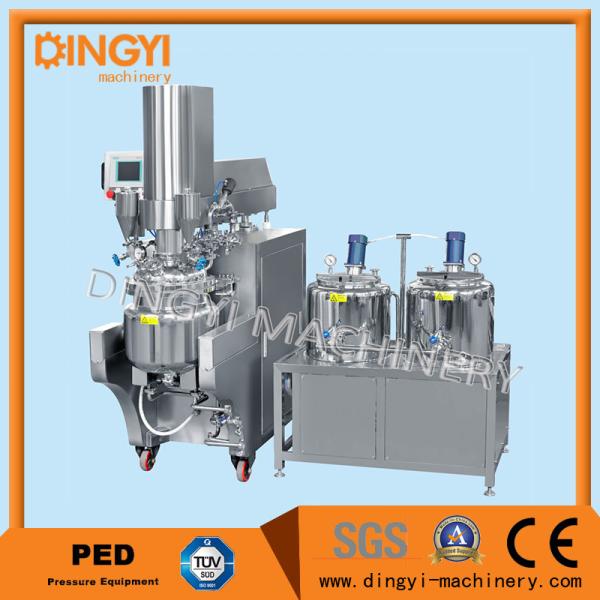

Vacuum Emulsifying Machine

Product description

Vacuum Emulsifying Machine is suitable for cosmetic and pharmaceutical factory to making cream, lotion, toothpaste, hair color. Working volume: 20 L, material: SUS316L stainless steel, electricity heating and water-cooling.

Structure: With 3-layer structure, upper and lower end sockets. The upper end socket is connected to the tank body with flange between them. The internal layer of tank body is made of 4 mm thick SUS316L stainless steel and interior polished in 300 MESH (sanitary level). The middle layer of tank body is made of 3 mm thick SUS304 stainless steel and can stand max. working pressure 0.09 MPa. The external layer of tank body is made of 2 mm thick SUS304, and exterior polished in 300 MESH (sanitary level). All the welding seams shall be polished after rubdown, and as to the treatment interface, turned over edge arc transition is adopted. There is a group of heating resistor (stainless steel )with 2Kw in the jacket. The heat preservation layer is made of PU polyurethane foaming.

· Capacity:20-30L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
