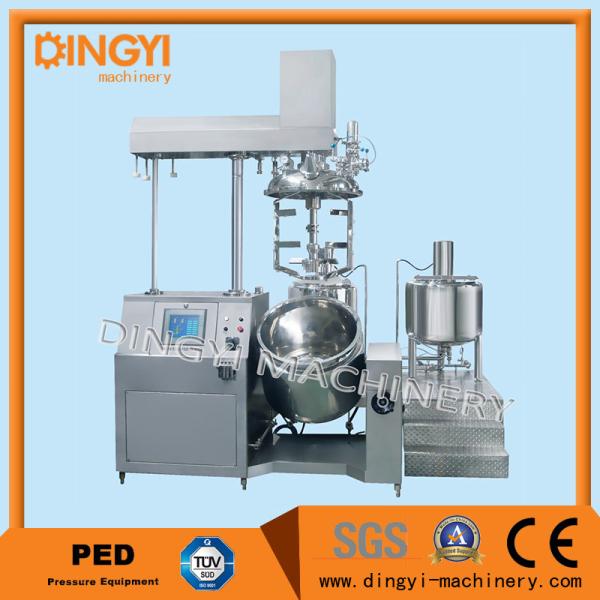

Vacuum Emulsifying Machine

Product description

Vacuum Emulsifying Machine use Touch screen control and Adopting German SiemensS7-200 series.

Touch screen adopts Siemens Company Model:TP700 MADE IN GERMANY

On the touch screen, it is possible to adjust and vision mixing speed, temperature of each jar, set upper limit and lower limit of temperature, control automatic valve. It is possible to set the time control for slow speed emulsifying mixing and control performance of lift of hydraulic system.

Electric elements: Siemens products

Transducer: Panasonic Company

Button/switch: FUJI Japan Company

Meter and sensor are home high quality products.

Vacuum Emulsifying Machine is suitable for pharmaceutical factory to making ointment. It is including machine tank, oil tank, water tank, also with double jacket for heating. it can discharge from bottom valve.

· Capacity:100L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
