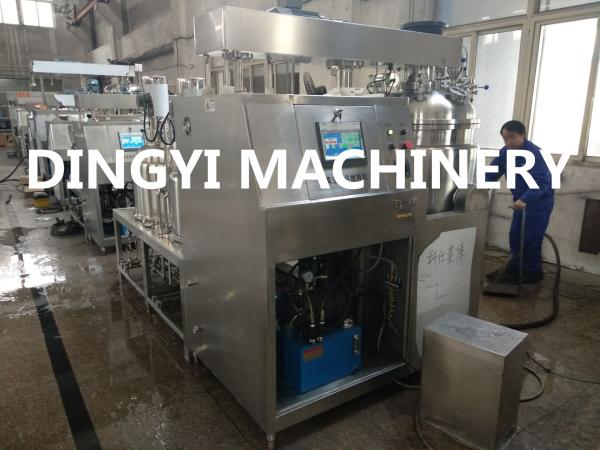

SS 316L High Shear Mixer HMI control with electrical heating

Product description


High-speed shear emulsion machine, is an upright installation of the emulsion equipment. Claw the structural design of the Stator rotor. The material from the upper or lower part is inhaled, and the high-speed cutting, the high-speed shear, the efficiency of the quality has been multiplied, to avoid the reaction of the Reaction Kettle the material is easy to produce a dead-end problem. The product is suitable for installation in various sizes of Reaction Kettle On containers Carry out Mix.
Attention: All wetted parts are grade 304 or 316 Stainless steel.

According to customer needs can be customized shape and heating, insulation, cooling, emulsification, dispersion, homogenization, mixing etc.
Please let us know for your needs.

By vacuum suction, especially for powder material, the use of vacuum suction could avoid dust. The whole process under vacuum conditions, to prevent the material stirring bubbles in high-speed, can achieve hygienic and aseptic requirements.
· Capacity:5L-2000L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
V acuum emulsifying equipment including:
· Vacuum emulsifying main machine
· Pre-mixing tank for sugar
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.093Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
