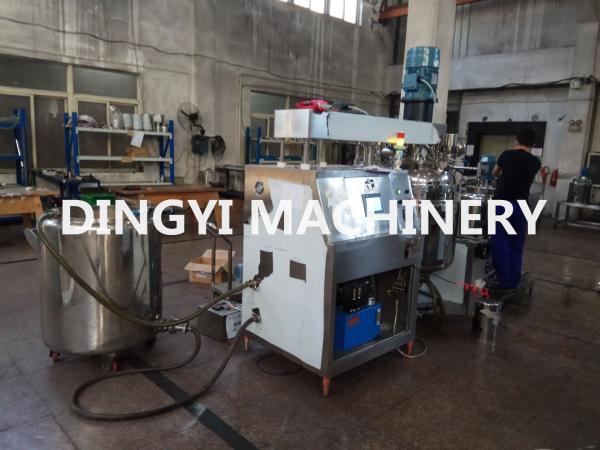

SS 316 Vacuum Homogenizer Mixer for shower gel with steam heating

Product description
That is very important
Frequency speed control: Panasonic /Siemens

Stirring scrap Material: SUS316L, Scrap material PTFE/Teflon
Motor: Siemens or ABB
Touch screen: Siemens
ABB brand or Siemens Motor
Frequency control Siemens
Homogenizer motor: ABB or Siemens
PLC Siemens touch screen control or button control


Multiple Choices
Fixed type or lift type
Heating method: steam or electric
Control: Siemens PLC touch screen or button
Homogenizer: bottom or upper
Discharge: pump or tilting

The reasons for you
1. for heating system (steam or electric heating)
(1) Steam heating saves cost in the future. The electric heating save cost now
(2) Steam heating temperature can reach to 130 degrees; the electric heating can reach to 100degrees.
(3) Steam heating up fast.

1 Advanced PLC touch screen control is optional.
2 The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilting discharge or use rotor pump for material out .
Vacuum emulsifying main machine:
· Slow mixer 10-40rpm with PTFE scraper
· Homogenizer 1150-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
