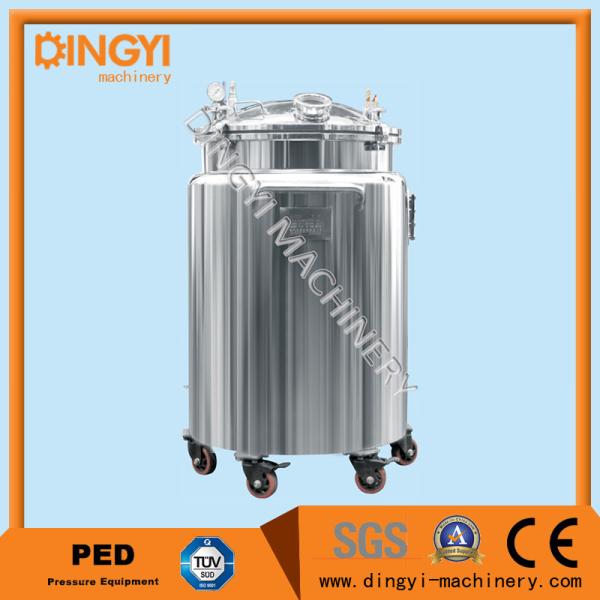

Soft Gel Stainless Steel Storage Tanks , Stainless Steel Chemical Tanks Electrical Heating
Soft Gel Stainless Steel Storage Tanks , Stainless Steel Chemical Tanks Electrical Heating
Specifications
Brand Name :
DINGYI
Model Number :
CG
Certification :
CE, ISO9001, PED
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
100 units per 60 days
Delivery Time :
45 - 60 days
Packaging Details :
Export Standard Wooden Case
Material :
SS316L or SS3004
Capacity :
200-350L
Heating :
electrical heating
Heat preservation :
PU or rock wool
Name :
ss storage tank
Feature :
durable
Description

stainless steel Gel storage tank

Volume:200-350L or Customization

Tank body:Structure of 3 layers: chamber, jacket, insulating layer.

Top cover:the lid can open with sealing ring.

Top lid nozzle list: material inlet, respirator, sight glass with lamp. tank body with heating water inlet and outlet, bottom with material outlet, 1 nos temperature sensor, wheels.

Material contact part SS316L, Non-material contactpart SS304.

Stainless steel storage tank
Material: SS304 or SS316L
Design Pressure: -1 -2 Bar (g)
Work Temperature: 0-100 °C
Volumes: 50~500L
Construction : Vertical type
Jacket type : jacket
Structure : Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function

According to the heating or cooling requirement ,

the tank will have jacket for required function
Optional Motor: ABB, SEW or Chinese brand
Surface Finish: Mirror Polish or Matt polish
Standard components : open lid, sight glass , CIP ball
Optional components :

Vent filter, Temp. Gauge, display on the gauge directly on the vessel

Temp sensor PT100, digital display on the control cabinet by instrument

Temp sensor with control for heating and cooling Level gauge with digital
Applications:

Food & Beverage Pharmaceutical Biotechnology &

Laboratory Medical &Medical Device Chemical Industry Painting
