Continuous Operating Vacuum Homogenizer Cream Mixer , Small Scale Homogenizer

Vacuum Homogenizer Cream Mixer application:

1). Food and beverage: dairy products, ice cream, chocolate, soy milk, juice, jam;

2). Chemical industry: Lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, insecticide, photosensitive latex, rubber slurry, resin pulp, thickener, flavor, silicon material, carbon black, magnesium oxide, titanium dioxide, Anti-adhesive agent, mold release agent, anti-foaming agent, sealant, etc.;

3). the cosmetics industry: detergents, conditioning agents, shampoos, body lotions, perfumes;

4). Pharmaceutical industry: injection, drug lotion, medicine cream, health care products, drug preparation;

5). paper industry: pulp, adhesive, injection, resin emulsification.

Vacuum Homogenizer Cream Mixer including:

· Vacuum emulsifying main machine
· Substrate dissolving tank and hot water tank with heat preservation
· Hot water circulating system
· Material auto feeding system(use heat preservation pipe )
· Vacuum system
· Platform made from SS304(option)

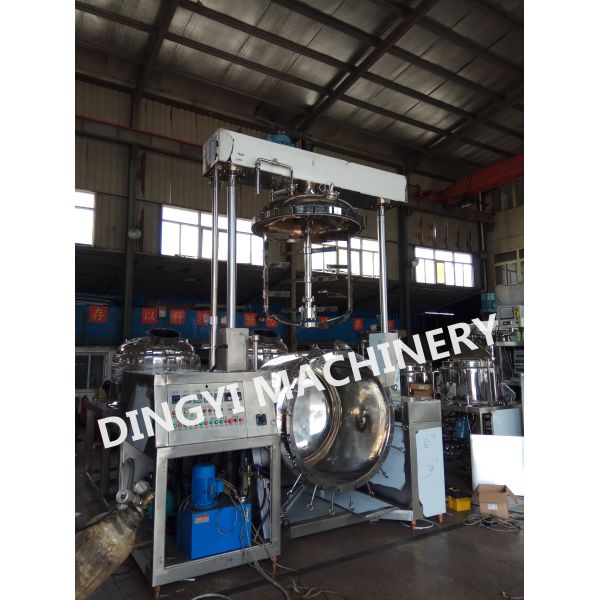

Vacuum Homogenizer Mixer main machine:

· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for hot water (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Oil pre-mixing tank
· High shear mixer 960rpm
· Heating by hot water
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

Vacuum Homogenizer Cream Mixer Parameter
· Capacity:350L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Options of Vacuum Homogenizer Mixer

Fixed cover by flanges design for tight budget customers
Contra mixing part or other slow agitator designs available
Frame type slow agitator for oil pre-mixer
Delta, Schneider or Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc
Mettler-Toledo load cell (option)
Flow meter automation for feeding liquid oil and water (option)
Pressure vessel design for different steam pressure (option)
After finish one batch, customer can use rotor pump for material out.
