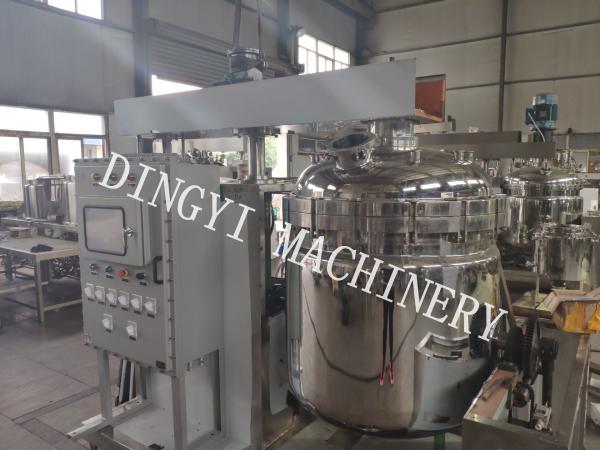

Ointment And Cream Vacuum Planetary Mixer With PLC Control Touch Screen

Ointment And Cream Vacuum Planetary Mixer With PLC Control Touch Screen description
Ointment and cream production processing as following:
Step 1: Prepare raw material
Step 2: Oil phase raw material in oil phase tank heating and pre-mixing, and water phase raw material in water phase tank heating and pre-mixing
Step 3:Self-suction oil phase and water phase material to main tank (heating, Homogeneous emulsion to emulsion phase (for example face cream )(in vacuum situation , will without foam )
Step 4: Cooling to 50-65degrees add additive(like powder), and then cooling to about 40degrees and discharge to storage tank.
Step 5: Storage.
Step 6: Filling, packing etc.

Vacuum homogenizer mixer is composed of pre-mixing tank (water tank and oil tank), vacuum emulsifying tank, vacuum pump, hydraulic system, discharge system, electronic system and operating platform.

Performances and Features

The controlling system adopts electric control system, stable and simple to manage.

The triple mixing adopts the Panasonic frequency converter for speed adjustment, which can meet different technological demands.

The homogenizing structure made through Japan technology adopts the good mechanical seal. The Max. emulsifying rotation speed can reach 3500rpm.

The vacuum de-foaming can make the materials meet the requirement of being aseptic.

Tank body welded by imported 3-layer stainless steel plate.Tank body and pipes adopt mirror polishing, conforming to cGMP.

The tank body can heat or cool materials .Heating modes include steam heating or electric heating.

Vacuum system:

· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
