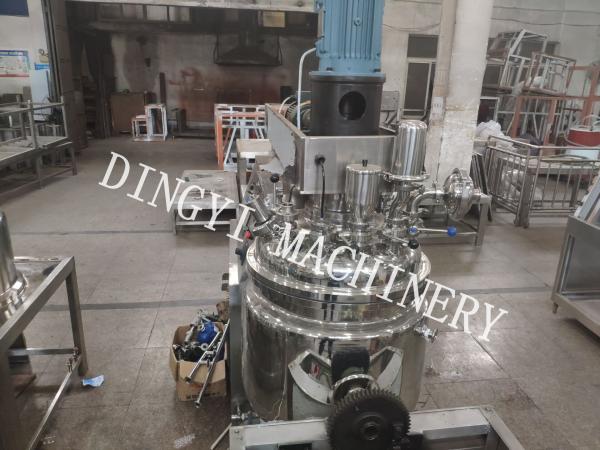

Shower Gel Vacuum Homogenizer Mixer With Stainless Oil Pre Mixing Tank
Shower Gel Vacuum Homogenizer Mixer With Stainless Oil Pre Mixing Tank
Specifications
Model Number :
200L
Certification :
CE, PED, ISO9001
Place of Origin :
China
MOQ :
1 set
Supply Ability :
30 sets per 60 days
Delivery Time :
60 days
Packaging Details :
Export Wooden Packing
Material :
SS316L or SS304
Heating Type :
Water Bath Heating
Voltage :
220V/380V, 50Hz/60Hz
Mixer Type :
Homogenizer
Operating type :
Continuous Operating
HS Code :
8479820090
Description

Shower Gel Vacuum Homogenizer Mixer With Stainless Oil Pre Mixing Tank

Vacuum Homogenizer Mixer description


Vacuum Homogenizer Mixer is constantly improved on introducing into the German and Japan technology. It is manufactured for the cosmetic and ointment. The machine is made up with the pre-mixing tanks, main tank, water ring type vacuum pump, hydraulic pressure and electrical control system.

Suppository Vacuum Emulsifier as a semi solid equipment are suitable for the pharmaceutical industries for making suppository,cream, ointment.

Options of Vacuum Homogenizer Mixer

Fixed cover by flanges design for tight budget customers

Contra mixing part or other slow agitator designs available

Frame type slow agitator for oil pre-mixer

Delta, Schneider or Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc

Mettler-Toledo load cell (option)

Pressure vessel design for different steam pressure (option)

SIP is available upon request (option)

Different power supply acceptable (option)



Vacuum emulsifying main machine:


· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.1Mpa for hot water (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator

Material: SS316L Or SS304 Heating Type: Water Bath Heating
Voltage: 220V/380V, 50Hz/60Hz Mixer Type: Homogenizer
Operating Type: Continuous Operating HS Code: 8479820090
