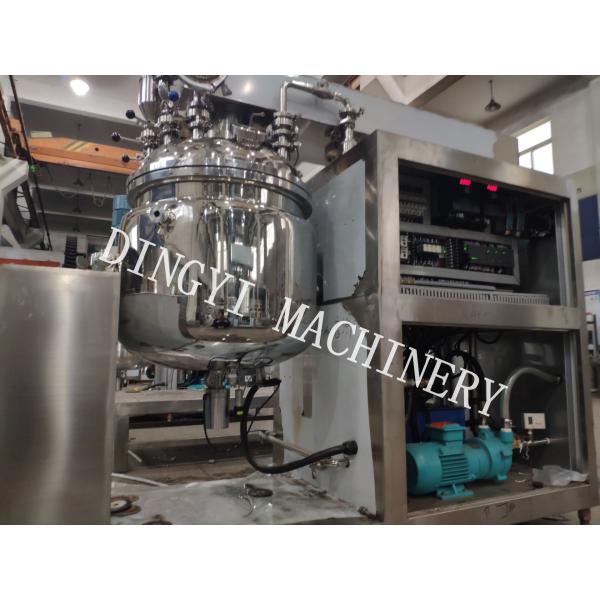

High Capacity Vacuum Emulsifying Mixer , SS304 Lotion Mixer Machine

5-2000L Vacuum Emulsifying Mixer for Cosmetics ,cream , ointment ,toothpaste ,lotion, skin care products ,food (for example Strawberry syrup )etc.

1. vacuum homogenizer mixer is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology.

2. The machine is made up of pretreatment tank (oil tank, water tank), vacuum homogenizer mixer main tank, vacuum pump , tilting system, electric control system or steam heating system and workable .

3. The function of the machine including mixing, homogenizing, heating, emulsifier etc. it's the best choose for making high grade cosmetic cream, lotion etc.

Vacuum Emulsifying Mixer description

Low speed mixing system

The low-speed mixing system produces two independent countercurrent flows inside the material.

1.1 One vertical fluid along the center can force material flow to the bottom of container. Its function is to convey the material to the bottom of homogenizing-turbine rapidly.

1.2 Another circle flow forces the material encircle the inner wall of the mixing container to facilitate the material to make heat-exchange during heating or cooling stage, which can prevent the material from being damaged due to overheat or overcooling.

the speed for slow mixer is 10-40rpm, if you have other requirement for mixer, please contact us, we will provide a suitable mixer for you.


Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Hydraulic system
· Control system
· Platform made from SS304

Vacuum emulsifying main machine:

· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:

· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.
