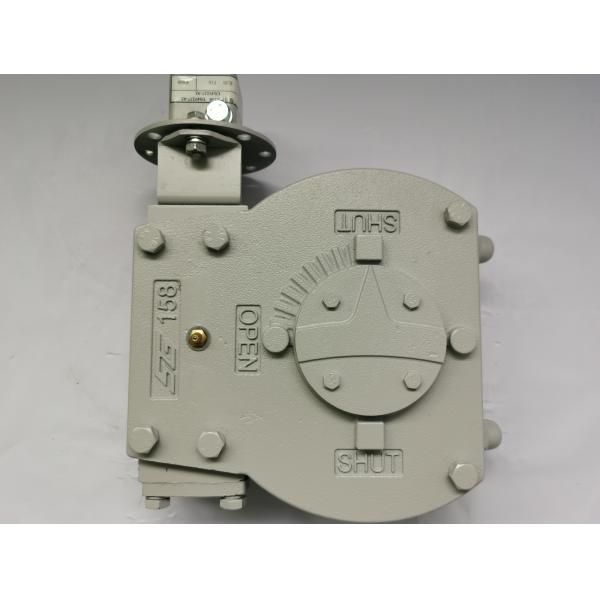

Petroleum industry cast iron handwheel gear operator gearbox IP67 protection

S008 series partial-turn gear operators

S008 series valve gearbox
The series consists of 14 models, with gear ratios ranging from 43:1 to 3525:1, and torque ranging from 720NM to 150000NM.
-A quarter-turn gearbox for manual installation, maintenance and operation of valves in pipelines (such as butterfly valves/ball valves/cock valves).
-Optional IP65, IP67 and IP68 protection levels
-Optional housing materials, including cast iron, ductile iron

Connect the bottom flange of the gear operator to the upper flange of the valve, and then slide the valve shaft into the hole on the worm gear. Tighten the flange bolts. Turn the hand wheel clockwise to close the valve, and turn the hand wheel counterclockwise to open the valve. On the upper surface of the gear operator, position indicators and position marks are installed, through which the position of the switch can be directly observed. The gear operator is also equipped with two mechanical limit screws, which can be adjusted and used to limit the position of the switch limit position.

Product Features

  • Gray iron casing
  • Welded hand-wheel
  • IP67 grade protection
  • Nickel-plated input shaft, with more resistance to corrosion
  • Ductile iron worm gear
  • NBR sealing materials
  • Suitable for -20℃ ~ 120℃ working conditions

Customization

  • Ductile iron casing
  • IP68 grade protection
  • Aluminum-bronze worm gear
  • Stainless steel input shaft
  • Designed with a lock mechanism

Main Components List

Part name Material optional material
Hand wheel Q235A/T700-2006
Housing HT200/GB9439-88 WCB GB/T12229-2005
Worm 45GB/T699-1999
Gear box HT200/GB9439-88 WCB GB/ T12229-2005
Cover HT200/GB9439-88 WCB GB/ T12229-2005
Gear wheel 45GB/T699-1999
Gear shaft 45GB/T699-1999
Cover HT200/GB9439-88

WCB GB/

T12229-2005
Worm gear QT500-7/GB1348-88
Indieator HT200/GB9439-88 WCB GB/ T12229-2005

Main Technical Parameter

Model ratio Rating input(Nm) Rating output(Nm) Efficiency(%)
S007 42:1 80 720 23
S008 50:1 110 1200 21
S108 72:1 120 2000 23.5
S158 70:1 150 2500 23
S208 68:1 220 3200 22
S238 175:1 170 6250 23
S308 275:1 150 9800 25
S358 532:1 170 18000 23
S408 700:1 190 32000 25
S448 1233:1 165 42000 23
S508 1254:1 190 60000 25
S608 1855:1 200 80000 23
S708 2292:1 200 100000 23
