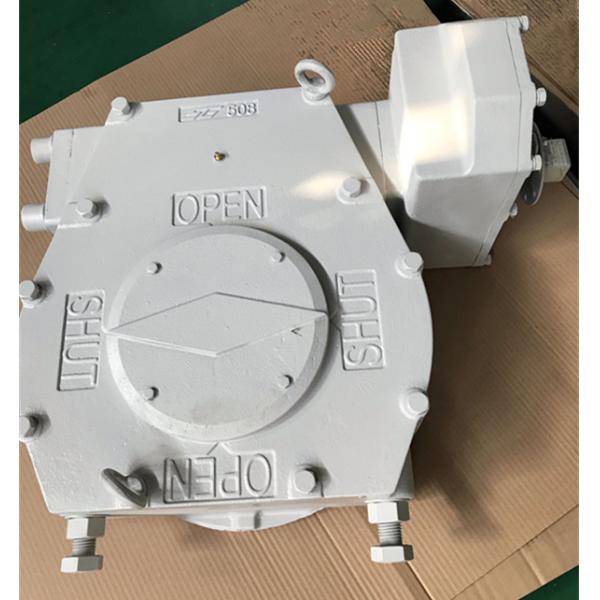

120℃ Nodular Cast Iron IP67 Ball Valve Gearbox
120℃ Nodular Cast Iron IP67 Ball Valve Gearbox
120℃ Nodular Cast Iron IP67 Ball Valve Gearbox
120℃ Nodular Cast Iron IP67 Ball Valve Gearbox
Specifications
Brand Name :
Stard-gears
Model Number :
S008
Certification :
IP67
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/P, T/T
Supply Ability :
1000 Pcs-6 weeks
Delivery Time :
20~30 work days
Packaging Details :
Cartons or wooden cases
Material :
nodular cast iron
Protection grade :
Protection Rating IP67
temperature :
Applicable to -20 ℃ ~120℃
Application :
General,Oil,Gas,Water,Valves for Solid/Liquid and Gas
Description

Nodular Cast Iron Protection Rating IP67 Ball Valve Gearbox

S008 series partial-turn gear operators

This series consists of 14 models varying from 43:1 to 3525:1 in terms of gear ratio and from 720NM to 150000NM in terms of torque.
- Quarter turn gearbox designed to use for the manual Installation, maintenance, and operation of valves (e.g. butterfly/ball/plug valves) in pipelines.

Product Features

  • Gray iron casing
  • Welded hand-wheel
  • IP67 grade protection
  • Nickel-plated input shaft, with more resistance to corrosion
  • Ductile iron worm gear
  • NBR sealing materials
  • Suitable for -20℃ ~ 120℃ working conditions

Customization

  • Ductile iron casing
  • IP68 grade protection
  • Aluminum-bronze worm gear
  • Stainless steel input shaft
  • Designed with a lock mechanism

Main Technical Parameter

Model ratio Rating input(Nm) Rating output(Nm) Efficiency(%)
S007 42:1 80 720 23
S008 50:1 110 1200 21
S108 72:1 120 2000 23.5
S158 70:1 150 2500 23
S208 68:1 220 3200 22
S238 175:1 170 6250 23
S308 275:1 150 9800 25
S358 532:1 170 18000 23
S408 700:1 190 32000 25
S448 1233:1 165 42000 23
S508 1254:1 190 60000 25
S608 1855:1 200 80000 23
S708 2292:1 200 100000 23

​Definition of protection level IP67

  • Dust protection: Dust cannot enter objects
  • Anti-short-time soaking: under normal temperature and pressure, when the shell is temporarily immersed in 1M deep water, it will not
  • cause harmful effects;

120℃ Nodular Cast Iron IP67 Ball Valve Gearbox

Major Clients:Warren Valve / Forum Energy / Velan valve
