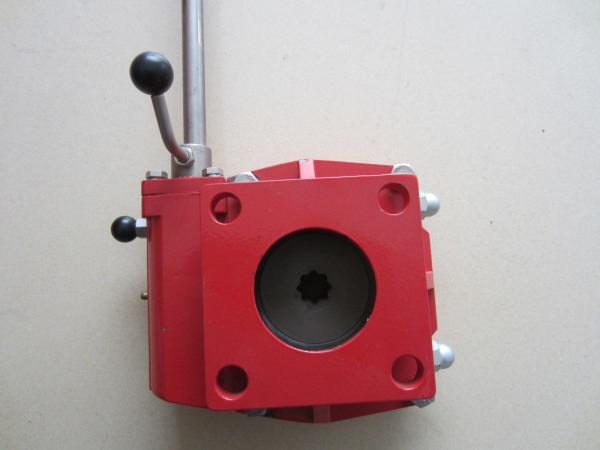

Handwheel Gearbox Worm Gear Reducer Cooperate With Pneumatic Actuator
Handwheel Gearbox Worm Gear Reducer Cooperate With Pneumatic Actuator
Handwheel Gearbox Worm Gear Reducer Cooperate With Pneumatic Actuator
Handwheel Gearbox Worm Gear Reducer Cooperate With Pneumatic Actuator
Specifications
Brand Name :
Stard-gears
Model Number :
SLJ
Certification :
IP65
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/P, T/T
Supply Ability :
1000 Pcs-6 weeks
Delivery Time :
20~30 work days
Packaging Details :
Cartons or wooden cases
Material :
Die cast aluminum
Protection class :
IP65
Operating temperature :
-20℃~120℃
colour :
Primer, black paint, customizable
Application :
General,Oil,Gas,Water,Valves For Solid/Liquid And Gas
Product Name :
Gear Operator
Description

Handwheel Gear Operator Worm Gear Reducer Cooperate With Pneumatic Actuator Apply to - 20 ℃ ~ 120 ℃

SLJ series gear operators

This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.

Product Features

  • Aluminum die-cast alloy or cast steel casing
  • Full stamped hand-wheel (200-350)
  • IP65 grade protection
  • Nickel-plated input shaft, with more resistance to corrosion
  • Ductile iron worm gear
  • NBR sealing material
  • Suitable for -20℃ ~ 120℃ working conditions

Customization

  • Stainless steel or LCB casing
  • IP68 grade protection
  • Aluminum-bronze worm gear
  • Stainless steel input shaft
  • For high temperature up to 320℃
  • For low temperature down to -40℃
  • For marine use

Advanced equipment can ensure high quality and high efficiency
Advanced processing equipment and experimental equipment can ensure that the product has higher precision and better quality

Main Components List

Part name

Material

Small cap

YL113/ WCB

Housing

YL113/ WCB

Worm gear

QT500-7/ Bronze

Bracket cap

YL113/ WCB

Main Technical Parameter

Model

ratio

Rating input(Nm)

Rating output(Nm)

Efficiency(%)

Hand-wheel

SLJ26

26:1

50

300

23

Φ200

SLJ38

38:1

65

550

23

Φ200

SLJ54

54:1

70

620

25

Φ250

80

700

Φ300

75

1000

Φ250

SLJ80

80:1

90

1200

26

Φ300

95

2000

Φ350

SLJ78

78:1

160

3200

26

Φ600

SLJ270

270:1

90

6000

25

Φ500

SLJ320

320:1

100

8000

25

Φ500

SLJ520

520:1

160

22000

25

Φ700

Handwheel Gearbox Worm Gear Reducer Cooperate With Pneumatic Actuator
