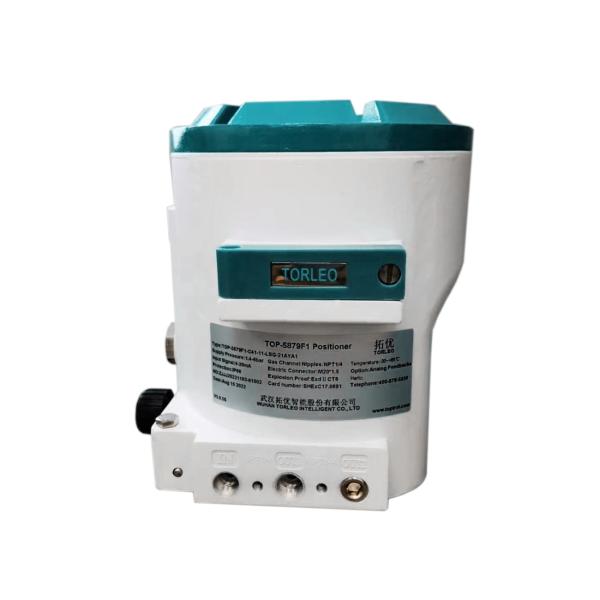

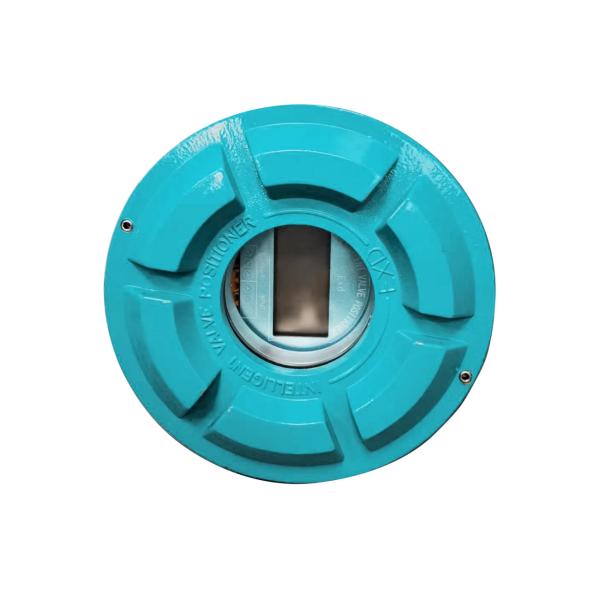

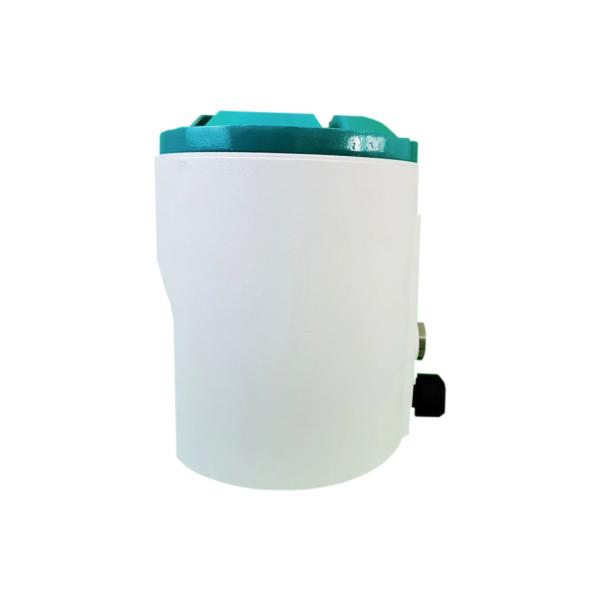

Smart valve positioner, flameproof explosion-proof Exd, straight stroke, single acting, failsafe

Auto setup: The auto-setup function is a fully-automatic configuration program which specifies the actuator and adjusts the zero and span of the valve. The program can be turned on simply from an external switch so that adjustments to the valve can be performed quickly and safely in hazardous areas.
Self-diagnostic: The self-diagnostic function provides with the ability to check the status of the positioner at any time and to alert in case of failure.
Input range: Configurable to any required range for split range
Flow characteristic: Linear, EQ%, Quick opening or custom user characteristics
Actuator type: Single or double acting actuator (optional reversing relay required)

Performance indicators

Product application field

TORLEO brand TOP-5879F1 series smart valve positioner are used in conjunction with pneumatic control valves, and are widely used in metallurgy, power generation, paper-making, environmental protection and other industries where process control is required.

Typical valve application

Diaphragm control valve, single-acting ball valve, single-acting butterfly valve

Technical features of the product

• Nozzle baffle + symmetrical membrane valve structure, strong ability to resist dust, moisture and oil;

• Built-in keyboard and large LCD screen, the positioner can be debugged without a handheld operator;

• HART communication, modular design, convenient for users to choose and use;

• Valve position output, modular design, convenient for users to choose and use;

• Configure linear, quick opening, equal percentage and user-defined flow characteristics;

• One-key auto-tuning operation to meet the needs of users for quick installation and fool-like debugging;

• PID compound control algorithm can achieve 0.1-0.3% control accuracy.

Selection guide for TOP-5879F1 C series smart valve positioner
