Ophthalmic Surgery Microscope Medical Apparatus And Instruments Motorized And Manual Control
Ophthalmic Surgery Microscope Medical Apparatus And Instruments Motorized And Manual Control
Specifications
Brand Name :
VANCO
Model Number :
VOM2000Dx
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PC
Price :
Nogetiable
Supply Ability :
100pcs/month
Delivery Time :
2-4weeks
Packaging Details :
wooden case
Eyepiece Magnification :
12.5×/18B
Objective Lens :
f=200
Working Distance :
170mm
Diameter of Field :
φ46mm ~φ8.5mm
Diopter Adjustment :
±7D
Focusing Range for Assistant Microscope :
≥30mm
Description

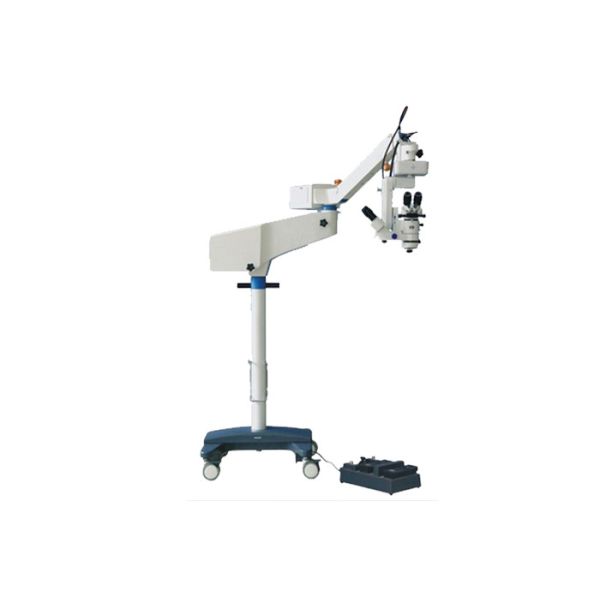

VOM2000Dx Operation Microscope

•It provides an amazingly clear, fine observations by using Xenon light source.
•-2 °+6° coxial illumination greatly improves the intension and range of red light reflex.
•UV-proof and heat absorption reduces the harm to intraocular tissues and make the patient feel more comfortable.

Eyepiece Magnification 12.5×/18B
Objective Lens f=200
Working Distance 170mm
Magnification for Main Microscope

4.6×-27×, motorized and manual control,

Continuous Magnification
Magnification for Assistant Microscope 6×,10×,16×
Diameter of Field φ46mm ~φ8.5mm
Diopter Adjustment ±7D
Pupil Distance 50mm ～ 75mm (main microscope is 45mm ～ 80mm)
Maximal Resolution 126LP/mm
Focusing Range for Assistant Microscope ≥30mm
Illumination Source 120V/100W Medical Xenon Lamp and 12V/100W Halogen Lamp. Dual-source hand- switched
Illumination Type 6°+2°Coaxial illumination, 26°oblique illumination
Filter UV-IR Filter, Yellow Spot Protection Filter,Redfree,GG435,GG475
Coaxial Illumination ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated
Oblique Illumination ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated
Reaching Radius of Arm 1230mm
Adjustable Vertical Range 925mm ～ 1465mm
Fine Focusing Speed and Range ≤2mm/s,≥45mm
Speed for X/Y and Range ≤2mm/s,50mm×50mm
Input Voltage AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power 280VA
Fuse AC250V T4.0A,AC125V T8.0A
