Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp
Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp
Specifications
Brand Name :
VANCO
Model Number :
XDS-1
Certification :
CE
Place of Origin :
CHINA
MOQ :
one pc
Payment Terms :
T/T
Supply Ability :
50PCS/MONTH
Delivery Time :
2 weeks after confirmation
Packaging Details :
Styrofoam case
Theory :
Inverted Biological Microscope
Drawtube :
Trinocular
Eyepiece :
WF10X
Objective :
10X/25X/40X
Nosepiece :
Quadruple
Illumination :
Halogen Lamp 6V30W
Description

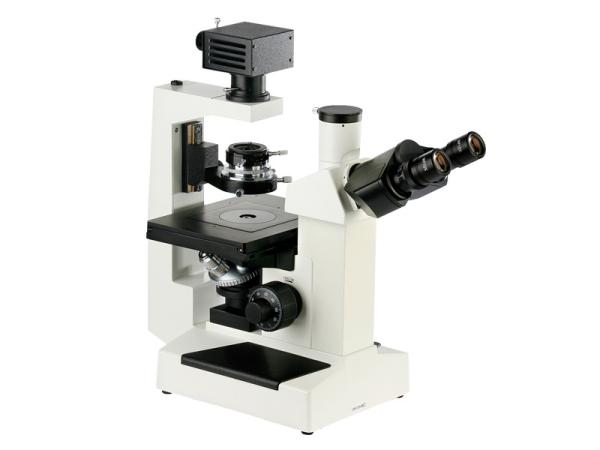

XDS-1 Inverted research biological microscope

XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry etc.

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Culture Tissue 100x-400x Inverted Research Microscope 6v 20w Halogen Lamp

Standard configuration

Model XDS-1
Eyepiece Wide field WF10X(¦µ20mm)
Objective Long working distance plan achromatic PL L 10X/0.25
Long working distance plan achromatic PL L 25X/0.40
Long working distance plan achromatic PL L 40X/0.60
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP
Eyepiece tube Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Ball bearing inner locating)
Stage Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
Shelf of specimen Match to install ¦µ68mm or 77mmX33mm culture utensil
Match to install ¦µ68mm culture utensil
Filter Blue filter
Green filter
Frosted filter
Impellent style phase contrast unit Centering telescope
10X Impellent style phase plate
Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm
Light source 6V 20W Halogen lamp with brightness control.
