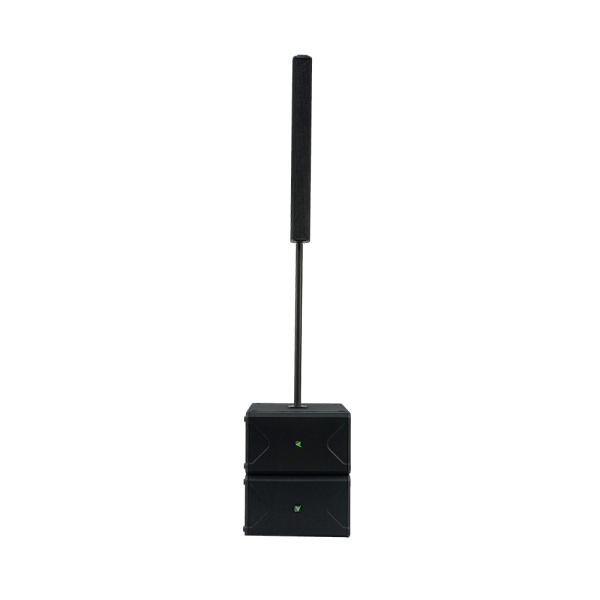

Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Specifications
Brand Name :
VATASA
Model Number :
M8-06
Place of Origin :
Guangdong, China
Certification :
CE,ROHS,CCC,ISO9001
Packaging Details :
soft bubble inside,thick carton outside
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
2 sets
Price :
$390.00 - $930.00/sets
Power Source :
AC
Battery :
NO
Number of Loudspeaker Enclosure :
6
Waterproof :
Yes
Speaker Type :
PORTABLE
Cabinet Material :
Wood
Display Screen :
NO
Intelligent Personal Assistant :
None
Built-in Microphone :
NO
Type :
Passive
Use :
HOME THEATRE, Portable Audio Player, Mobile Phone, Karaoke Player, Stage, Outdoor, Party
Special Feature :
PORTABLE
Product name :
Professional full range speaker active column speaker
Item No :
M8-06+M110AS
Frequency Response(speaker) :
180Hz-20kHz
Directivity(speaker) :
90°(w)x20°(h)
Nominal Impedance(speaker) :
16Ω
Max SPL(speaker) :
115dB
Speaker driver :
6x2.75"
Sub driver :
1x10"
Sub power :
500W(Sub)+250W(Sat)
Power input :
220-240VAC 50-60Hz
Port :
Guangzhou, Shenzhen
Description
Product Description

Professional full range speaker active column speaker

The most expandable active 1.1 audio system in the M8 series of portable PA products. The ultra-thin connection structure eliminates the need for extra pickles and reduces the distance between the two sound column quality inspection units to the extreme, ensuring that the line sound source composed of the two sound columns is transmitted without any death. The subwoofer has built-in DSP audio processing and super power amplifier digital power amplifier driver. The column sound subwoofer can be freely matched according to the use occasion. The vertical coverage distance and sound pressure have strong scalability and flexibility, and the sound pressure coverage is uniform, which is widely used In the fields of stage performance, commercial road shows, education and training.
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Full Range Column Array Pa System Intelligent Active Column Array Speaker
Applications:
stage performance
commercial road shows, education and training
Specification
M8-06
M110AS
Type
full range column speaker
active subwoofer
Amplifier power
/
500W(Sub)+250W(Sat) RMS
Nominal impedance
16Ω
4Ω
Frequency response
180Hz-20kHz
45Hz-180Hz
Maximum spl
115dB
121dB
Average sensitivity
/
+4dBu/-10dBu
Input interface
1*Speakon;1*Contact connection
1*Combo
Output interface
1*Contact connection(Sub output)
1*XLR(Link out) 1*XLR(Sub output) 1*Speakon 1*Contact connection
Driver
6*2.75"
1*10"
Directivity
90°(H) x 20°(V)
/
Frequency devision
180Hz
Bracket installation
1*Φ25mm
1*Φ25mm,1*M20
Power input
/
220-240VAC 50/60Hz
Fuse
/
T3.15AL 5*20mm
Limiter
/
DSP Soft limit
Cabinet material
aluminum
birch plywood
Color
Black
Black
Cabinet size(HxWxD)
480*95*106mm
310*500*450mm
N.W
2.65kg
17kg
