Specifications
Brand Name :
VBE
Model Number :
VBE-DRV
Certification :
ISO9001
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
1000 sets per year
Delivery Time :
About six working weeks
Packaging Details :
Wooden packing
Name :
Radar Vehicle-mounted UAV defense system
Coverage Range :
up to 3km
Channels :
3 band or 8 band
Power supply :
AC220V
Power Consumption :
120W or 370W
Description

CCTV10 Reported UAV Drone Jamming System, Vehicle - Mounted Drone Jammer with 3km Radar Detection system, Automatic Anti-Drone System

3km Radar detection Vehicle-mounted UAV Drone defense system , Drone Signal Jammer,

Automatic Anti-Drone System

Product Instruction:

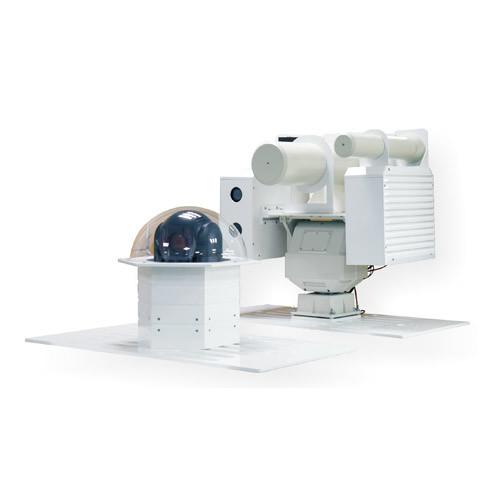

A photoelectric module with dual cameras is integrated in the system for the UAV detection and identification. System will keep tracking and identifying the suspicious target with the HD camera when the High-speed ball camera send out coordinate, and expel or force it to land automatically with EMI module when the UAV is identified.


Mobile UAV defense system can be extended with the Audio detection module, Radio detection module and Radar equipment. And multiple systems can be connected to the network for rapid deployment.

System performance:

Equipment Parameter Performance
Photoelectric module Resolution 1080p
Range Clear sky: ≥ 1000 m
Night vision: ≥ 300 m
Identification time ＜ 0.5S
Multi-target processing capability TWS,10 batches
Anti-UAV module Band 2.4GHz, bandwidth 100MHz
5.8GHz, bandwidth 40MHz
1.5GHz, bandwidth 40MHz
Power Single frequency point: 47±1dBm
Range

≥ 3000 m

Optional performance:

Equipment Parameter Performance
Radar System All solid-state pulse compression
Frequency Ku Band
Radiation power ≤ 100W
UAV detection range TypeⅠ:≥ 1000 m(30cm≤Drone wingspan diameter≤50cm)
TypeⅡ:≥ 3000 m(1m≤Drone wingspan diameter)
Multi-target processing capability TWS, ＞ 20 batches
Antenna rotating speed

15 rpm
