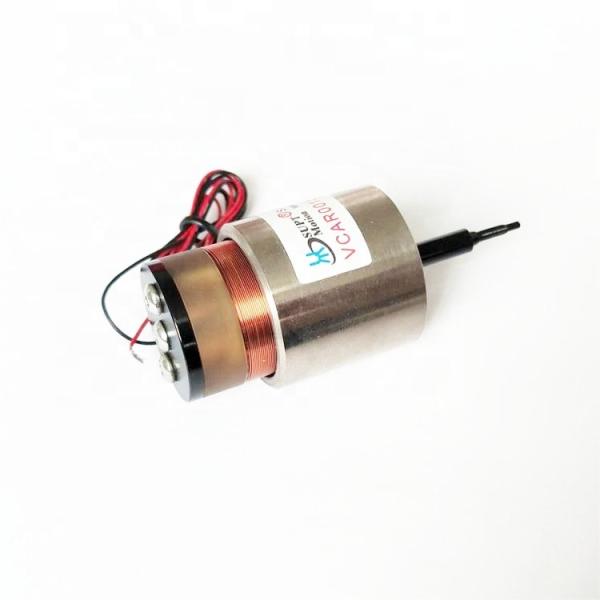

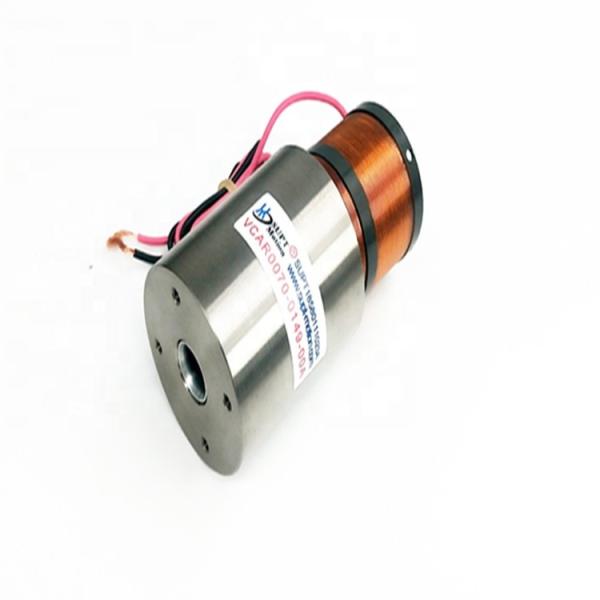

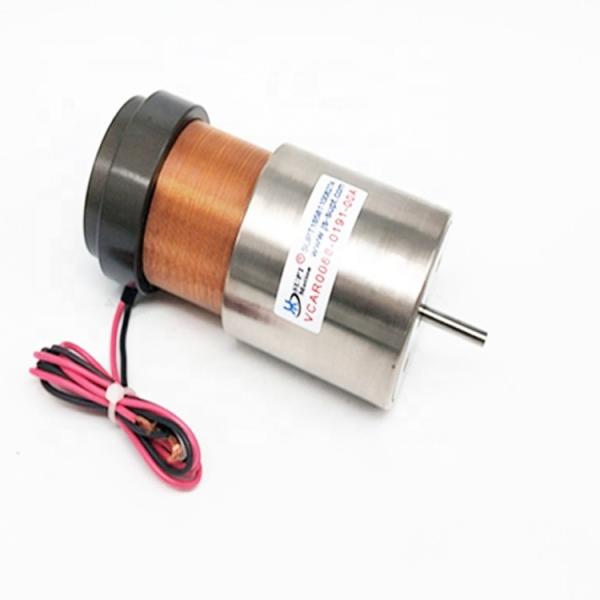

High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAB Series
Place of Origin :
Jiangsu, China
Certification :
ISO9001
MOQ :
≥1
Price :
$145
Packaging Details :
Carton Packaging etc
Delivery Time :
1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms :
T/T
Supply Ability :
Interview
Product Type :
Linear Voice Coil Motor With Shaft
Repeatability :
High
Rated Speed :
100HZ(RPM)
Positioning Accuracy :
High
Stroke Length :
6.2mm
Load Capacity :
High
Linearity :
High
Product Model :
VCAB0015-0062-00A
Peak Force :
15N
Description

High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation

Product Description:

Linear Voice Coil Motor is a linear voice coil device that is highly efficient, reliable and cost-effective. This product is designed to provide precise linear motion and is used for various applications. It provides low power consumption with high repeatability, rated speed of 100HZ (RPM) and low noise level. This Linear Voice Coil Motor is also rated at 2500N, which is the highest power that can be achieved by any Linear Voice Coil product.

The Linear Voice Coil Motor is designed to provide high accuracy and repeatability, and its high power output ensures excellent performance. This product is also designed to be lightweight and compact, making it easy to install and operate. It also offers a low power consumption and low noise level, making it an ideal choice for many industrial applications. This Linear Voice Coil Motor is a reliable, efficient and cost-effective linear motion solution.

The VCAB series of Cylindrical Actuators constitute nearly 80% of the market,they can produce a high force with a high acceleration rates.Peak force range for 0.7N to 3000N.Typically,their stroke length is less than 50mm.

The VCAB series Actuators Application include valve actuators,Z axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems.Markets include Medical Semiconductor,Aeropspace and Automotive.

Features:

  • Product Name: Linear Voice Coil Motor
  • Load Capacity: High
  • Force Output: High
  • Model Number: VCAB Series
  • Power Consumption: Low
  • Rated Power: 2500N

Technical Parameters:

Parameters VCAH Series
Linearity High
Power Consumption Low
Resolution High
Force Output High
Positioning Accuracy High
Noise Level Low
Rated Power 2500N
Repeatability High
Rated Speed 100HZ(RPM)
Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.

High Resolution Linear Voice Coil Motor With Shaft For Industrial Automation
