Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Lightweight High Linearity Linear Voice Coil Motors With Low Noise For The Automation Industry
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCRH Series
Place of Origin :
Jiangsu, China
Certification :
ISO9001
MOQ :
3PCS
Price :
$108-$135
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
1-5pcs ,5 days . >30pcs ,To be negotiated
Packaging Details :
Customized packaging etc.
Repeatability :
High
Voltage Range :
24V
Speed Range :
High
Load Capacity :
High
Linearity :
High
Resolution :
High
Rated Power :
2500N
Description

High Frequency Response High Speed Low Noise Semi-Enclosed Voice Coil Motor

Product Description:

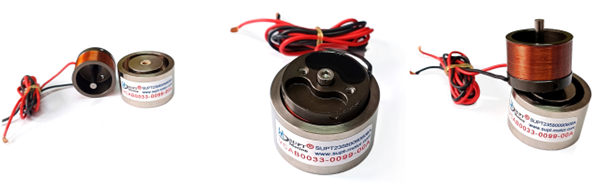

Linear Voice Coil Motor (VCRH Series)

The VCRH series Linear Voice Coil Motor is a linear vocal coil engine that offers high linearity, positioning accuracy and rated power of up to 2500N. It is a lightweight device with low noise level and high responsiveness, making it an ideal choice for a range of applications.

The linear voice coil motor offers superior performance with its high linearity feature. It ensures accurate positioning and provides a smooth and stable motion with its low noise level. The motor also has a high rated power of up to 2500N, making it suitable for applications requiring high forces.

The VCRH series linear voice coil motor is a robust, reliable and efficient device that is easy to integrate into a variety of applications. Its lightweight design and low noise level make it an ideal choice for a range of applications. It is a reliable and efficient device that is sure to meet your expectations.

Features:

  • Product Name: Linear Voice Coil Motor
  • Model Number: VCRH Series
  • Resolution: High
  • Rated Power: 2500N
  • Positioning Accuracy: High
  • Current Range: 4.9A

Technical Parameters:

Product Feature Parameter
Product Type Linear Voice Coil Motor With Shaft
Model Number VCRH Series
Voltage Range 24V
Rated Power 2500N
Current Range 4.9A
Resolution High
Force Output High
Linearity High
Power Consumption Low
Noise Level Low
Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

Applications:

SUPT MOTION VCRH Series Linear Voice Coil Motor: High Load Capacity, Low Noise Level and 2500N Rated Power

The SUPT MOTION VCRH Series Linear Voice Coil Motor is designed to meet the needs of high load capacity, low noise level and high rated power in a variety of applications. It is a linear voice coil system with 24V voltage range and maximum power of 2500N. With its strong load capacity, low noise level, and high rated power, it is ideal for applications in industrial automation, robotics, medical equipment, and other motion control applications.

The VCRH Series Linear Voice Coil Motor is designed to provide smooth and precise linear motion in a variety of applications. With its high power, low noise level, and high load capacity, it is perfect for applications that require precision and reliability. It is also designed for long-term use, with a long service life.

The SUPT MOTION VCRH Series Linear Voice Coil Motor is designed to provide reliable and accurate motion control. With its high power, low noise level, and high load capacity, it is ideal for industrial automation, robotics, medical equipment, and other motion control applications. It is designed to provide smooth and precise linear motion in a wide range of applications.
