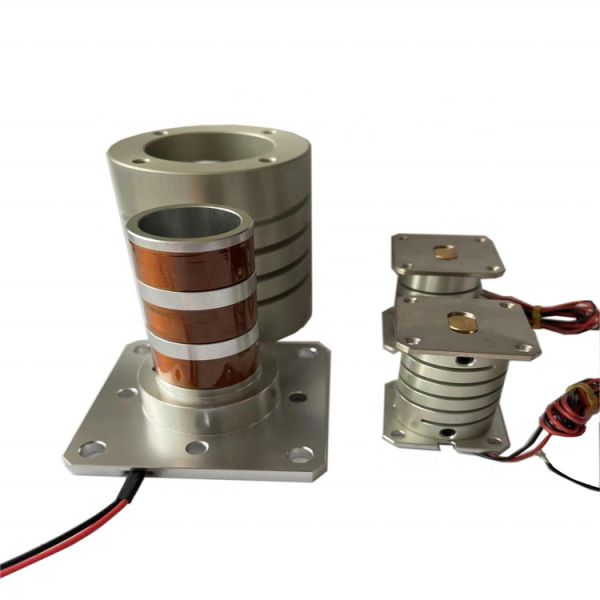

High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
Specifications
Brand Name :
SUPT MOTION
Model Number :
VCAZ0020-0040-00A
Certification :
ISO9001
Place of Origin :
China,Suzhou
MOQ :
1PCS
Price :
$122
Payment Terms :
T/T
Supply Ability :
To be negotiated
Delivery Time :
General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
Packaging Details :
Carton Packaging etc.
Type :
Micro Motor
Certifications :
ISO9001
Peak force(N) :
20.5
Application :
BOAT, Car, Electric Bicycle, 3D Printing,Microscope,Robot,Medical Ventilators,Optical project
Commutation :
Brush
Construction :
Permanent Magnet
Maximum travel(mm) :
3
vibration motor(V) :
25.9
actuator weight (g) :
375
Continuous force(N) :
8.9
Life :
Long Life
Speed :
High speed
Description

Product Description:

The flexible feeding mechanism of voice coil motor solves the feeding problem that cannot.
This motor is made of materials with high strength and good stability. Short response time, high vibration frequency, good consistency and stability. With special drive control technology, parts can move forward and backward, turn over, disperse and converge.
The feeding mechanism is integrated with adjustable backlight, which can complete vibration feeding, automatic control by visual system, and automatic control by machine picking system.
be solved by the traditional vibrating disk.
Flexible vibration voice coil motors are capable of generating high-precision vibration output, and the vibration frequency and amplitude can be precisely adjusted by controlling the size of the current, frequency and other parameters. For example, in some precision optical equipment, the flexible vibration voice coil motor used to drive the lens can realize micron or even nanometer level vibration amplitude control, so as to realize the precise adjustment of the optical path.
Flexible vibration voice coil motor in the application of optical stabilization system:
Flexible voice coil motors play an important role in the anti-shaking system of cameras, video cameras and other optical devices. When shaking occurs in the equipment, the motor can quickly drive the lens or image sensor to reverse the vibration to offset the effect of shaking on imaging. By accurately controlling the vibration of the motor, effective compensation for small jitters can be realized, improving the clarity and stability of captured images and videos.

Features:

Flexible vibrating voice coil motors, short response time, high vibration frequency, good consistency and stability.

Product Parameters:

Winding constant VALUE UNIT
DC resistance 10.2 Ω
Voltage @ Fp 25.9 V
Current @ Fp 2.6 A
Inductance 1.3 mH
Peak force 20.5 N
Con force 8.9 N
Actuator constant 2.55 Ka
Power @ Fp 65.3 W
Total stroke 3 mm
Max winding temp 150 ºC
Actuator weight 110 g

High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems

Product Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems

High Speed High Precision Flexible Vibrating Voice Coil Motors For Optical Stabilization Systems
