Ford New Transit Medical Ambulance 8-seat Gasoline 4×2 (III)

Serial number vehicle technical parameters

1 Body size mm mm: 5341×2032×2445 (length× width× height)

2 wheelbase mm: 3300

3. The total weight of the fully loaded vehicle is kg: 3300.

4 Vehicle kerb mass kg: 2320

5 suspension system: McPherson suspension in front and leaf spring suspension in rear are independent.

6 Minimum ground clearance mm: 148

7 Minimum turning radius M: 6.15

8 fuel type: gasoline

9 Tank volume (L): 80

10 engine upright four-cylinder EFI

11 displacement ml: 1997

12 rated power kw (HP)/rpm: 162

13 Track (front/rear) mm mm: 1736/1720

14 Axle load (front/rear) kg kg: 1455/1845

15 Front suspension/rear suspension MM mm: 1014/1027, 1014/1207

16 Emission standard: GB18352.6-2016 National VI

17 drive mode front drive

Transmission: 5-speed manual transmission

19 top speed km/h: 156

20 tyre size model 215/65 r16c

21 Brake system front disc and rear disc

22 rated passenger (including driver) 8

Main configuration of vehicles

23 All-metal closed load-bearing body

24 ABS+EBD, driver's seat (main) airbag

Central lock, remote control key, front electric doors and windows, multi-function steering wheel.

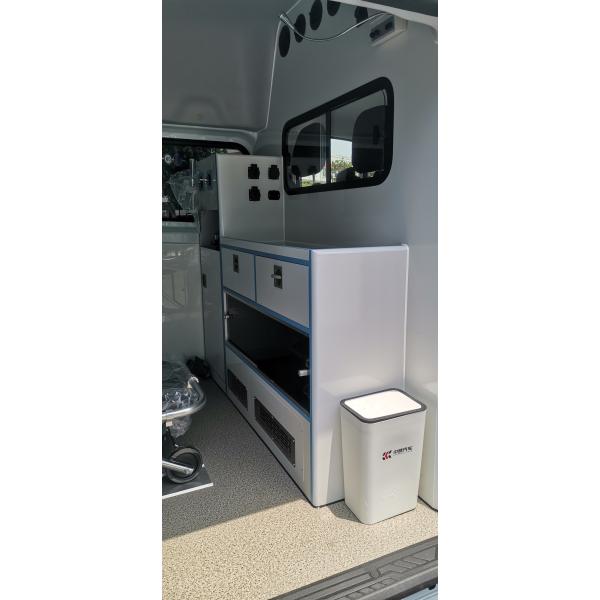

Original system of 26 cab medical cabin

27 black bumper, high brake light

28 spare tire, spare tools

30 Intelligent Vehicle Navigation

Body painting

1 white body+red powerful reflective tape 1

2 Medical cabin window 1

Alarm and lighting system

3 100 w alarm 1

4 LED embedded blue flashing warning light on the forehead of the roof 1

5 blue flashing warning light of the tailgate LED on the roof, blue white warning light of the left and right LED on the roof 6

7 LED lighting in medical cabin 2

Central power distribution system

9 a new type of ambulance vehicle power supply device 1000W pure sine wave inverter for installation and use.
