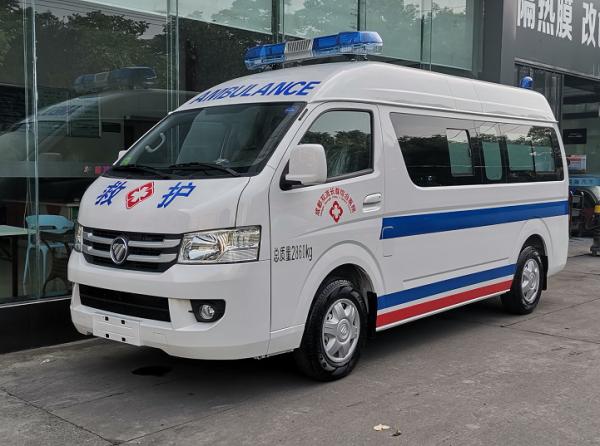

Futian medical ambulance gasoline 7-seat rear drive 4×2

Serial number vehicle technical parameters:

1 Body size mm mm: 5320×1695×2400 (length× width× height)

2 wheelbase mm: 3050

3. The total weight of the vehicle with full load is kg: 2860

4 Vehicle curb weight kg: 2080

5 fuel type: gasoline

6 Engine model: 4K22D4M

7 Suspension form (front/rear): double wishbone torsion bar spring independent suspension/leaf spring dependent suspension.

8 displacement ml: 2378

9 rated power kw: 118

10 maximum net power kw: 110

11 Track (front/rear) mm mm: 1470/1465

12 Front suspension/rear suspension MM mm: 1190/1080

13 Emission standard: GB18352.6-2016 National VI

14 Minimum turning diameter (m): 12.5

15 Transmission: Manual gear.

16 top speed km/h: 150

17 tyre size model 195/70r15lt, 195r15c

18 Brake system front disc rear drum

19 Rated Passengers (including Drivers) 6-8

Main configuration of vehicles

20 All-metal closed load-bearing body

21 ABS+EBD

Original system of 22 cab medical cabin

23 Same color bumper

24 spare tools

25 High position brake light

Configuration inside and outside the medical cabin:

1 white body+red powerful reflective tape

2. Glass film is pasted on the window of medical cabin 2/3.

Alarm and lighting system

3 100 w alarm

4 LED blue long row flashing warning lights at the front of the roof

5. The blue flashing warning light of the LED of the roof tailgate.

6 LED snail light above roof tailgate

7 LED blue warning lights on the left and right sides of the roof

8 LED square lighting in medical cabin

Central power distribution system

9 a new type of ambulance vehicle power supply device 1000W sine wave inverter is installed and used. It can be used for precision medical equipment and can form uninterrupted power supply.

10 AC/DC (220V, 12V) power socket set

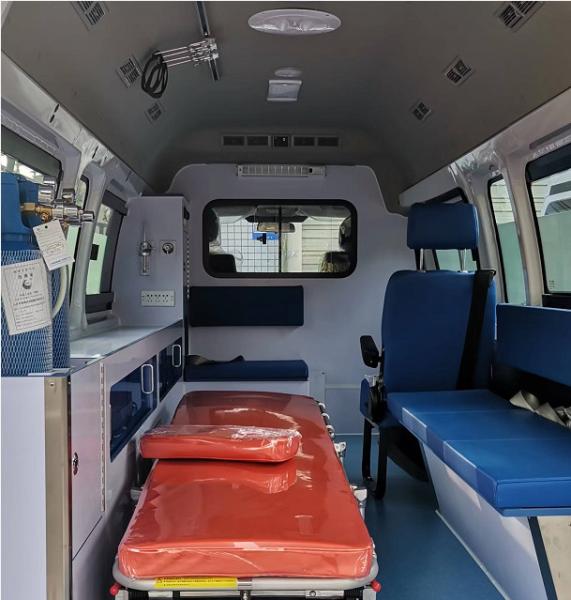

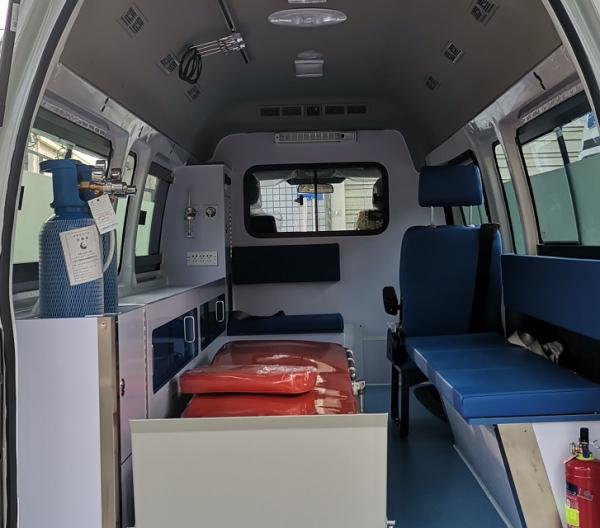

Medical cabin configuration

11 ultraviolet sterilization lamp, which has the function of timing delay opening.

Independent heating and cooling air system for the medical cabin, with independent control of heating and cooling, and reasonable control of the temperature in the medical cabin as required.

13 Two-way ventilation system in medical cabin (air inlet and outlet)

14 infusion hook at the top of medical cabin

15 Installation of partition wall between cab and medical cabin: with sliding window.

Combined medicine cabinet on the left side of the medical cabin: the cabinet door has a sliding door and an oxygen tank, and the first-aid equipment can be fixed on the table.

17 nurse seat with adjustable back for single person and long row seat for two people on the right side of medical cabin: with comfortable back, soft cushion and seat belt.

18 Single-seat cabinet after partition: with comfortable back, soft cushion and seat belt; Medicine cabinet;

19. All cabinet doors of the medical cabin are equipped with drawer locks: with self-locking function.

20 10-liter oxygen cylinder

21 oxygen quick interface, in line with national standards.

22 medical floor or aluminum alloy floor of medical cabin

23 1KG fire extinguisher

24 stainless steel dirt bucket

Special instruments and equipment

25 automatic boarding stretcher

26 stretcher platform
