For Benz C200 W204 Auto Air Conditioner Compressor Parts 7SEU17C WXMB098

The AC compressor is responsible for reducing the volume of the refrigerant gas, compressing it in order to complete the refrigerant cycle in the system. It can be thought of as the component that does all the heavy lifting. In order to perform this task, it requires energy, which it obtains from the engine through a pulley and shaft.


Parameter :

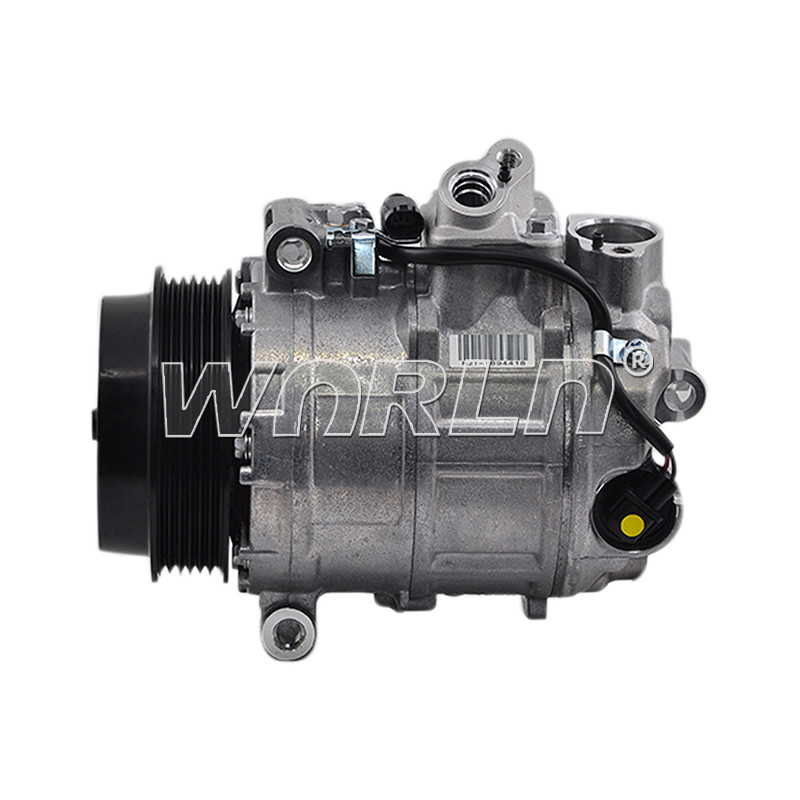

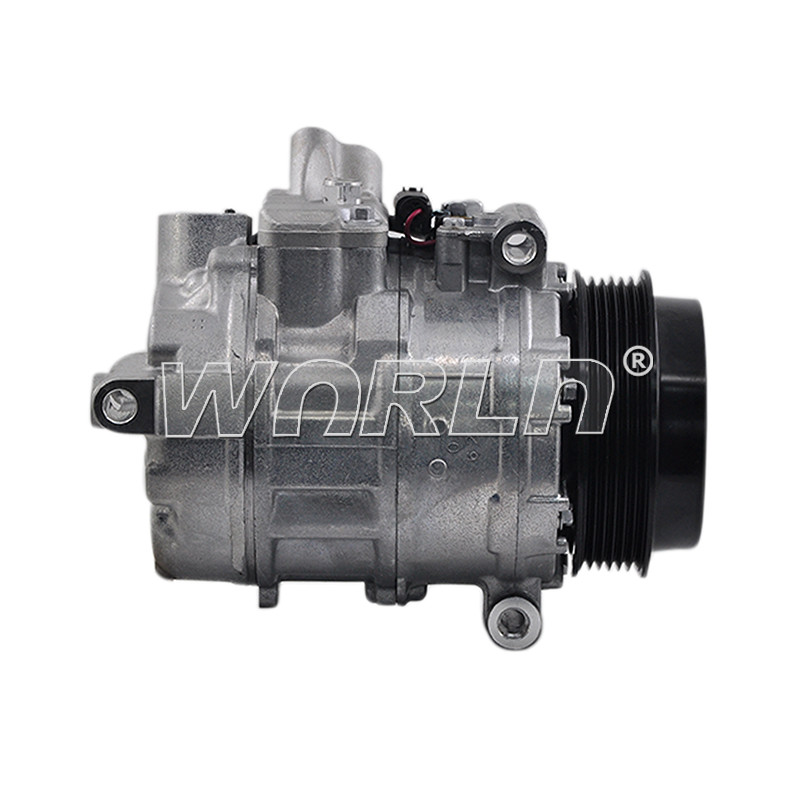

Product pictures

How the A/C Compressor Works

To start, it's important to understand the connection between your A/C compressor and refrigerant. Freon is a commonly used refrigerant that turns hot air into cold air. The compressor and refrigerant work together to achieve this. In your car, the engine powers the A/C compressor, which compresses the refrigerant to absorb the hot air inside the cabin of your vehicle.

The most common type of A/C compressor is the swash plate type. It is driven by a pulley and V-belt attached to the engine block. When you turn on the A/C system, an electromagnetic clutch activates the belt drive. The swash plate moves six double-ended pistons that handle intake and compression. Reed valves control the flow of refrigerant. The refrigerant is mixed with a thin mist of oil for lubrication.

Next, the A/C compressor takes in gas from the refrigerant through the evaporator, causing a drop in pressure. This leads to the refrigerant evaporating at a low temperature. The A/C compressor then takes this cold vapor and compresses it. As a result, the refrigerant gas is warmed and pushed into the condenser through pipes. In the condenser, it becomes a liquid again and releases heat before moving to a cooling area. The refrigerant absorbs heat from the passenger compartment and returns to a gaseous state in the evaporator before being sucked in by the A/C compressor.

A/C Compressors for Cars

The A/C compressor is the driving element of the cold A/C loop and is also the most technically complex component.

There are Three main car compressor technologies:

1.Piston-Type Compressors
The piston type is the most common. This type contains swash plate technology and wobble plate technology.

2.Rotary-Type Compressors
Rotary-type compressors main axis of the rotor coincides with the center.

3.Scroll-Type Compressors
Scroll-Type Compressors dislocation creates pressure to achieve high-speed rotation.

Warranty:

We provide one year quality warrantee. Any question of the product, please first contact us

This warranty is subject to the following conditions and exclusions:

1.The shipping costs for return back to our company is in buyer side

2. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

3. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number.

As soon as we receive the goods, we will repair or change new part .

4. If the quality or damage caused by improper installation or use, not within the scope of warranty
