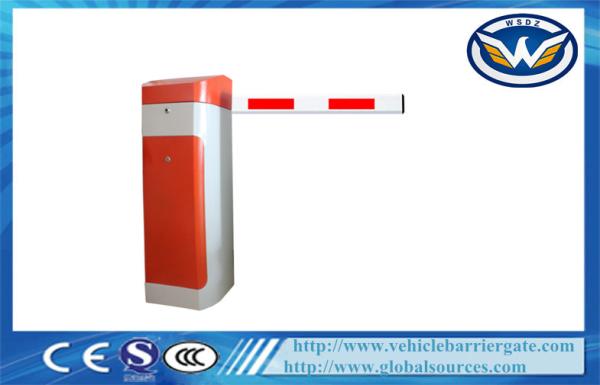

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters
Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters
Specifications
Brand Name :
WONSUN
Model Number :
DZ-132A
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Housing dimension :
302 * 352 * 1000 mm
Arm type :
Straight arm, folding arm, fence arm, optional
Housing material :
2mm cold roller steel plate
Power supply :
AC 220V / 110V
Max boom length :
6m
Open / close time :
1.8s, 3s, 6s
Description

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Technical data:

Name Barrier gate, Parking barrier,Boom barrier
Model DZ-132A
Size 302*352*1000mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 120w
Speed Option 1.8s; 3s; 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 5 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +75°C
Remote Control Distance Less than 30m
Package

Packing size: 1040*352*470mm, standard export carton case

Inside with PE foam for collision protection
Application Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

Functions&Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)

Parking list:

Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters
