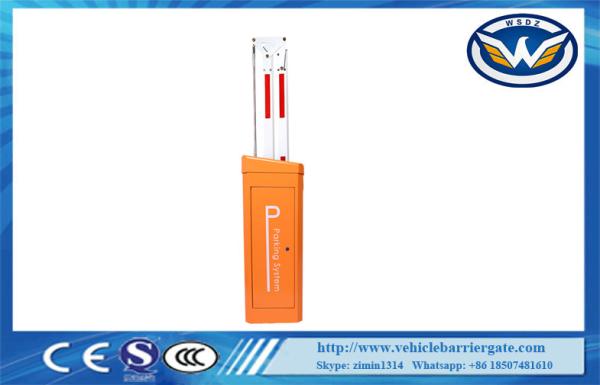

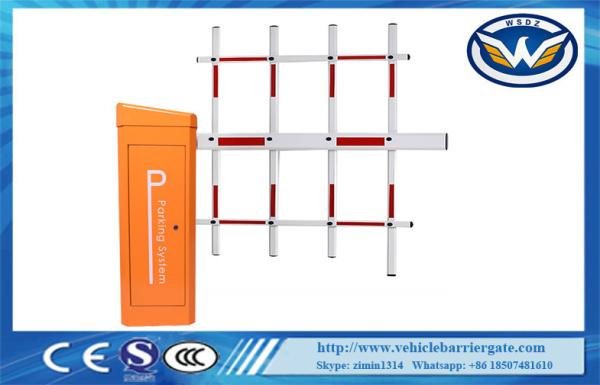

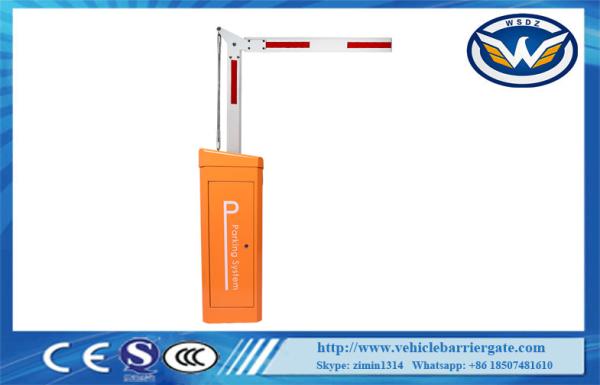

IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
Specifications
Brand Name :
WONSUN
Model Number :
DZ-138
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Operation time :
0.6,0.9,2,4.5sec
Color options :
Green, grey and black, orange, gold
Features :
Run speed adjustable, battery supported, maitenance free, free debugging
Working environment temperature :
-40 ℃ ~ +85 ℃
Protection System(IP) :
IP54
Product name :
IP54 24V DC Brushless Servo Motor Car Parking Lot Barrier With Encoder Limit
Description

IP54 24V DC Brushless Servo Motor Car Parking Lot Barrier With Encoder Limit


DZ-138 barrier gate specifications:

DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise＜ 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55

Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality

The parameter for selecting the balance compressed spring

Number The length of boom (L=meter) Diameter of the spring (D=mm) Link hole selection
1 2.5＜L＜3.5 D=4.5 Link hole 2
2 3.5≤L≤4.0 D=5.5 Link hole 1
3 4.0＜L＜5.5 D=6.5 Link hole 2
4 5.5≤L≤6.0 D=6.5 Link hole 1

The parameter for selecting the balance tension spring

Boom Type The Length of Boom Selection Spring

Boom

Type

 Spec.(diameter*Length)

Straight Boom/Folding Boom

 6M≥L＞5M Extension Spring (ø5.5MM*280)+(ø4.5MM*280)
5M≥L≥4.5M (ø5.5MM*280)
4.5M＞L≥3M (ø4.5MM*280)
Fence Boom 5M≥L≥4M (ø6.5MM*280)+(ø6.5mm*x280)
4M＞L≥3M (ø5.5MM*280)+(ø4.5mm*280)

(the parameter is based on the company’s boom)

Disassembly Diagram For Arm Direction:

IP54 24V DC Car Parking Barriers 150W Power Consumption With Encoder Limit
