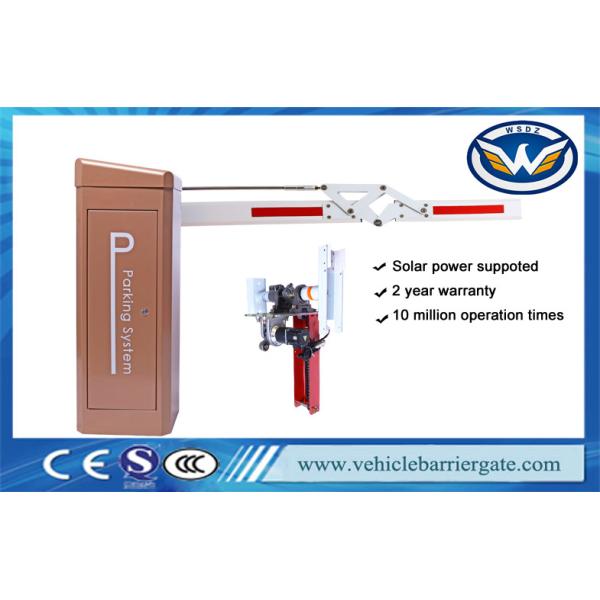

0.6S 6M Un-Blocked Barriers Mechanical and Electrical Integrated Barrier Gate with Fast Speed Boom

Our Advantages:

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support,Skype:annabelle8258,WhatsApp:0086 13682581314
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order

Quick details:

The DZ-138 servo barrier gate series, which manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil tight, no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast and smooth, easy to use and safe.

Functions and Features

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special

requirement, manual operation is required when power off, operating arm open and close manually also can

be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed are optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted.

6. Barrier gate up &down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. R&G Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple

push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid

damage to the vehicle, and barrier gate machine.

14. Delay closed selection function.

15. High-sensitivity arm auto reverse function (intensity can be adjusted).

16. Parking system interface.

17.RS485 or RS232 network communication control up &down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Adjustable speed port (from 0.9s to 10 s)

20. High-strength precision cast steel, industry moving parts beyond the industry quality

Package:

Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
