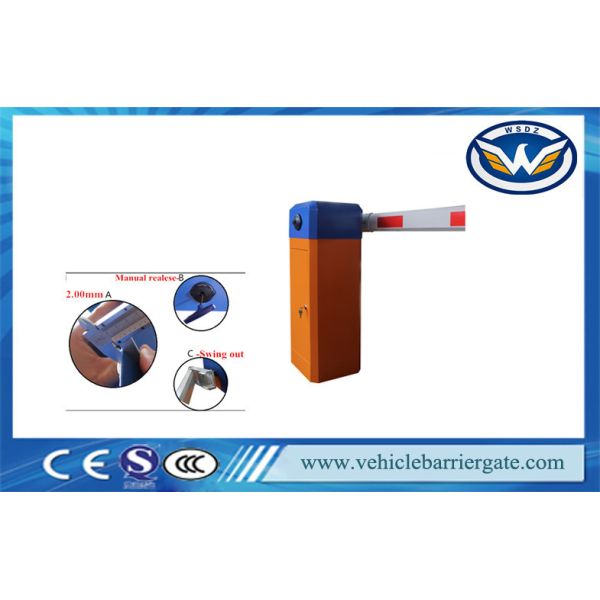

Newest Upgrade 0.9 Sec 4 Meters Round Arm Toll Barrier Gate CE

Functions

1) Adjustable speed from 0.9sec to 6sec

2) Manual realease

3) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;

4) Die-casting aluminum alloy motor, precision and good at thermal radiating;

5) Motor cooling fan, solving the problem of heat-protection;

6) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);

7) Reversing on obstacle;

8) Auto-closing;

9) Support the In frared Photocell for anti-bumping function(optional);

10) Support the external and internal Vehicle Loop Detector;

11) Traffic light interface;

12) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );

13) RS485 Communication module (optional).

Technical Parameter

Common Malfunctions and Solutions

1 The arm is no reaction when connect the power and press the open/close key.

a: Check the controller’s power supply and fuse.

b. There is no battery or power shortage on the remote control, the distance is too far.

c.There is co-frequency interference in the vicinity, check with the wire control interface to see if it’s normal.

d. The external protection circuit has failed or in a protected state,check the infrared device or loop detector device.

e: Check the motor and capacitor to see if invalid.

2 The boom could not raise up or fall down when press the open/close key.

a: The photoelectric limit is on bad contact,check the connections.

b: Replace the photoelectric limit switch.

3 The motor is buzz,boom is no reaction when press the open/close key.

a:The voltage is insufficient,check the 220V power supply.

b:The gears are stuck, and hand wheel rotates several circles toward the loose place, and re-adjust the photoelectric limit to prevent the struck caused by mechanical limit from being before the photoelectric limit.

c: It’s imbalance between the balance spring and boom,re-adjust it.

4 The boom is not horizontal and vertical.

a: The photoelectric limit is shaft,re-adjust and fix.

b: Check the connection rod and adjust the boom to horizontal and vertical,and make the photoelectric limit acts before the mechanical limit.

5 The force for arm up become smaller,sometimes need the handle assistance to make it up.

a: Check the motor and capacitor.

b: Re-adjust the spring balance.

Service Items

9.1 One year’s free servicing is supplied(not including the arm);

9.2 Lifetime charged servicing is offered;

9.3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

1) Broken by the wrong installation.

2) Broken by improper voltage.

3) The surfaces of the system destroyed by wrong installation or use.

4) Broken by natural disaster.

5) Overdue.

6) Servicing items out of our promises.
