Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System
Specifications
Brand Name :
WONSUN
Model Number :
WSTP-115
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1PC
Price :
negotiated
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Product Name :
Bluetooth Parking Lot Safety Barrier,Automatic Toll Barrier Gate
Housing Material :
2.0mm thickness cold roll steel sheet,water-proof
Rating Voltage :
AC220V/110±10%
Frequency :
50/60HZ
Motor Speed :
0.6s/1s/1.8s/3s/6s
Boom Type :
straight,two fence,three fence,90 degree,180 degree
Power Supply :
120W
Boom Material :
aluminum alloy
Color :
blue and orange
Gross Weight :
60KGS
Working Temperature :
40℃~+75℃
Keywords :
Toll Barrier Gate
Description

Bluetooth Parking Lot Safety Barrier,Automatic Toll Barrier Gate

Product Specifications:

Product Name Bluetooth Parking Lot Safety Barrier,Automatic Toll Barrier Gate
Model Nuber WSTP-115
Operation Time 0.6s,1s1.8s,3s,6s
Rating Voltage AC220V/110V±10%,50/60HZ
Power Supply 120W
Size 320*280*920mm(L*W*H)
Material 2.0mm thickness Galvanized plate sheet or cold roll steel sheet
Arm Option

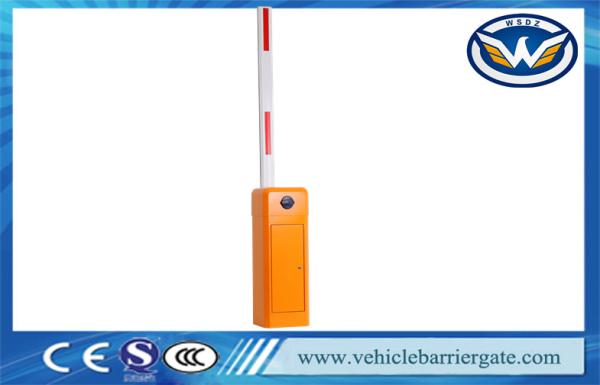

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

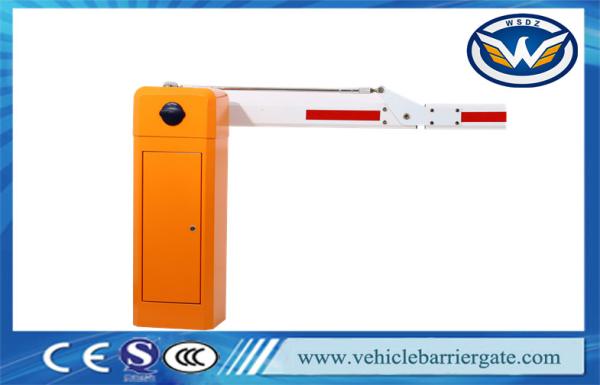

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

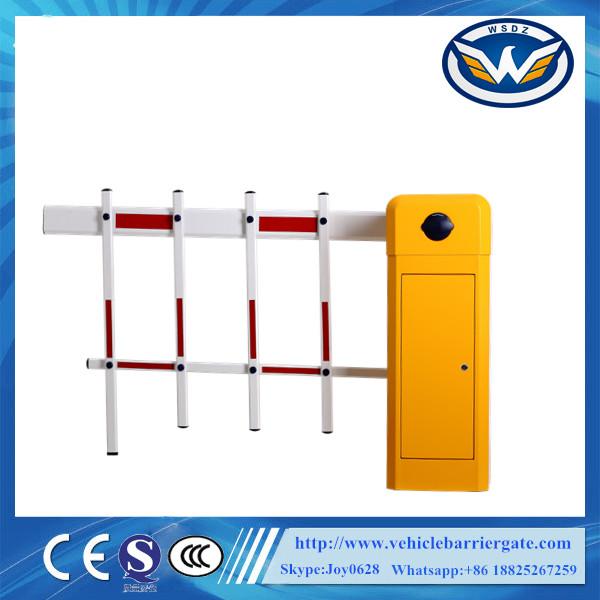

Fence arm, 1-5m for option, two fence or three fence

Remote Control Distance ≥30meters
Working Temperature -45℃ to +75℃
Packing

1030*380*450mm,with seven layers carton size,inside with air bubble film for protection
Warranty one year

Basic Features:

1) Manual release for power off.
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
3) Die-casting aluminum alloy motor, precision and good at thermal radiating.
4) Motor cooling fan, solving the problem of heat-protection.
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor).

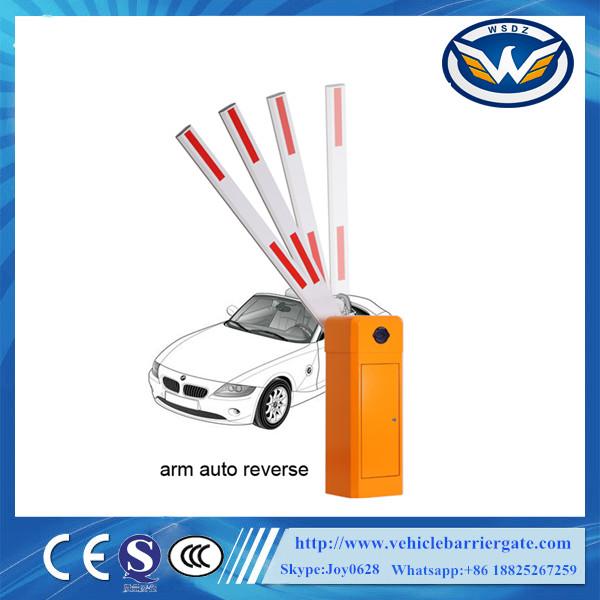

6) Reversing on obstacle.
7) Arm swing out when Vehicle hitting the arm.
8) Support the INFRARER PHTOCELL for anti-bumping function (optional).
9) Support the external and internal VEHICLE LOOP DETECTOR (optional).
10) Traffic light interface.
11) Wire control (switch signal)/ Remote control (418MHZ).
12) RS485 communication module (optional).

Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System

Company Information:

Bluetooth Parking Lot Safety Parkir Boom Gate Auto Barrier Gate System

FAQ:

1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.

2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.

3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.

4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.

5. How long will your gate barrier working?

Gate barrier life span is 5-10 years.

6. What should we do if there have problems during using?

my dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or call me!

We will provide our best professional service for you.

7. First time import, how can i believe that you would send product?

We are verified company by , to make transaction success .

8.How to import your machines?

* We will prepare gate barrier and shipment for you after payment;

*We will give you bill of loading after gate barrier depart our shipping port;

*Our shipping agent will contact you when gate barrier arrival

Our Service:

1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.
