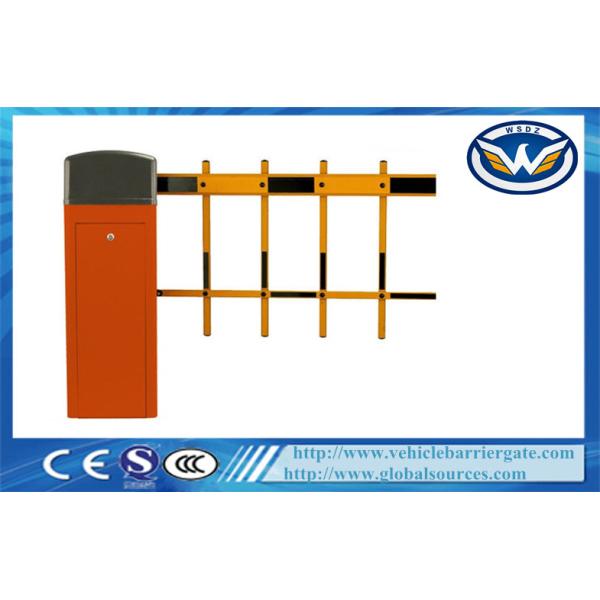

5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods
5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods
5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods
5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods
Specifications
Brand Name :
WONSUN
Model Number :
WST-1211
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Housing material :
2mm cold roller steel plate
Open / closing time :
3s, 6s
Housing dimension :
280 * 240 * 996 mm
Motor Rotational Speed :
1400rpm
Arm material :
Aluminum alloy
Arm width & Height :
100 * 45 mm
Description

5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods

Quick Detail:

Name: Traffic Barrier Gate
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS

Operation time: 1s, 1.8s, 3s, 6s, optional

Arm type: Straight arm, folding arm, fence arm, optional

Voltage:AC220V, AC110V


Model Selection and Differences

5 Million Operation Times Traffic Barrier Gate with Two Fence Arm Double Limit Methods


Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4)Boom backtrack function: the boom will rise if it hits something when falling
5)Infrared photocell dasign: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6) Both external and internal loop detectors are supported.
7)Open,Close and Stop controlling interfaces
8)Traffic light signal connection device:red light for stop; green light for pass.
9)Remote control and wire control for selection
10)Delay off the boom close function


Specifications

Model

WST1211

Working Temperature

-40℃～+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



With WONSUN, your job gets easier.

Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers

1) Q: Connected power and press open/close button but traffic barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3) Q: Motor running but traffic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position

Contact us for pricelist and catalog:


Sue Zhang
Email:sue@wonsunbarrier.com
Skype:SueZhang729
Whatsapp:+86 158 7925 9831
