700 KGS Automatic Sliding Gate Opener , Gate Automation Kit Automatic Warm - Up
700 KGS Automatic Sliding Gate Opener , Gate Automation Kit Automatic Warm - Up
700 KGS Automatic Sliding Gate Opener , Gate Automation Kit Automatic Warm - Up
700 KGS Automatic Sliding Gate Opener , Gate Automation Kit Automatic Warm - Up
Specifications
Brand Name :
WONSUN
Model Number :
WSTP120
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Supply Ability :
1000 Sets/Month
Power supply range :
AC220V/110V±10% 50/60Hz
Max loading weight :
1500kg
Open(close) speed :
v=12m/min
Rated power :
200w
Working temperature of motor :
-25 to +55 Celsius degree
Output gear module :
M=4
Description

700 KGS Automatic Sliding Gate Opener , Gate Automation Kit Automatic Warm - Up

specifications:

  • Power supply range: AC220V/110V±10% 50/60Hz
  • Net weight: 8.5kg
  • Max loading weight: 1500kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 200w
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open(close) speed: v=12m/min
  • Maximum pull: 1100N
  • Package one set in one carton

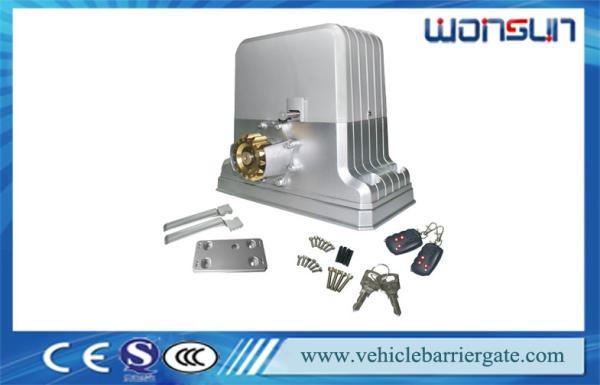

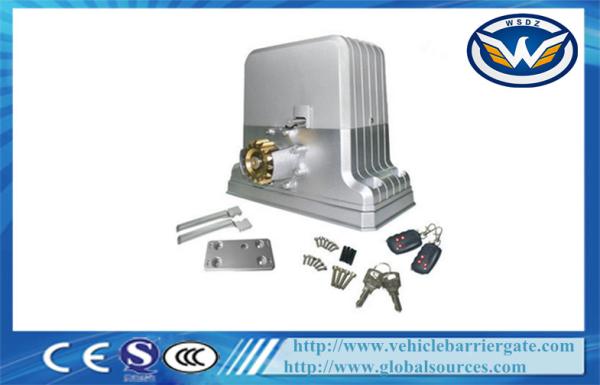

Each kit includes:

  • 1 x motor
  • 2 x remote controllers
  • 1 x control panel
  • 1 x base plate
  • 2 x magnets
  • 1 x user's manual

Functions of sliding gate operators:

  • Totally integrated electrical mechanical system (excludes racks)
  • Control board interface for optional impact-proof infrared photocells
  • Alarm lamp interface
  • Automatic delayed closing
  • Adjustable resistance sensitivity
  • Auto gate stop and re-open when an obstacle is encountered
  • Wireless remote control or wired remote control are optional

Sliding gate operators description:

  • Single phase
  • Speed up to 600mm per second
  • Manual override release clutch
  • Basic features means easy to set up
  • Soft starting and stopping function
  • All electric enclosed in a protective enclosure
  • 100% duty cycle

Others information of sliding gate opener:

  • Guarantee time: 1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Minimum order

Packing list

Name

Quantity

Unit

Remark

Sliding gate operator

1

set

Necessary

Remote control

2

pcs

Necessary

Internal hexangular bolt

4

pcs

M8*40

Internal hexangular bolt

4

pcs

M6*16

Left limit iron

1

pcs

Necessary

Right limit iron

1

pcs

Necessary

Base board

1

pcs

Necessary

Release key

2

pcs

Necessary

Manual

1

pcs

Necessary

Infrared photocell

1

set

Optional

Radio emitter

1

set

Optional
AC Motors are looking at the quality of the used oil from a 5-star average rating in each of such
quality,price,design and quiet operation. Remote Operation Known that flawless quality. The motor,
remote door version of the company's success. Most find that after installation due to more than two
years without a loss. And no fussy time applications such as motor noise. Door ajar The main
farthest distance using a remote is more than 50 meters in general use,and more than 100 meters
in open space. Never heard of the door flows into the motor locked rotor Stopper, which is why it
can not be unlocked with Manual, which lead to customer dissatisfaction. Another advantage of
the motor and out the door is a Soft-Start will not jump like BSM brand or multiple brands in our
model, which is a block away, making noise and reduced motor life. If the cost and quality of the
product, I recommend this product I purchased. Do not worry that it will live up to your expectations?
Customers. Do not fight it later The company's product Willing to submit to foreign countries such as
Myanmar,Laos without having to worry about losing customers or customer relationships offline.
