RS485 Communication Module Both Traffic Barrier Gate of Left And Right Installed
RS485 Communication Module Both Traffic Barrier Gate of Left And Right Installed
RS485 Communication Module Both Traffic Barrier Gate of Left And Right Installed
RS485 Communication Module Both Traffic Barrier Gate of Left And Right Installed
Specifications
Brand Name :
WONSUN
Model Number :
WST-118
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Housing material :
2mm cold roller steel plate
Housing color :
Bule, Orange, White, Yellow
Housing dimension :
335 * 335 * 935 mm
Power supply :
AC 220V / 110V
Remote control distance :
within 50 meters
Arm material :
Aluminum alloy
Description

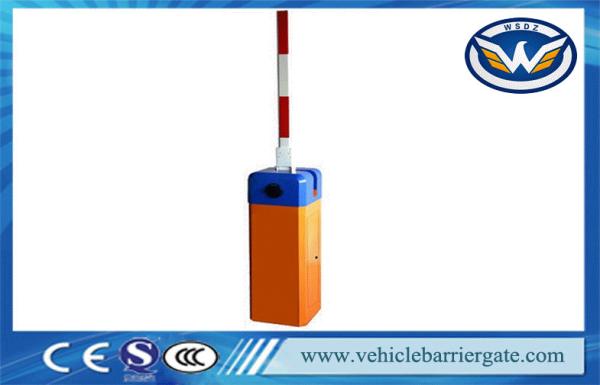

Vehicle Barrier Gate with RS485 Communication Module Both Used For Left And Right Installed



Quick Detail:

Name: Vehicle barrier gate
Speed:6 seconds
Feature:Straight boom
Installation director: Both left install and right install
Rated Power:80W
automatic,Intelligent
vehicle access control


Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WST1181

Straight boom

6m

6 seconds

WST1182

Straight boom

4.5m

3 seconds






Functions & Features


a. Motor cooling fan, solving the problem of heat-protection.

b. By the time the power is supplied, lock the clutch device to make it working normally again

c. Special spring device: both the compression spring and tension spring can be used in the machine

d. Using the compression spring can avoid accidents caused by the tension spring

e. Three control buttons: for boom raising, falling and pausing



Specifications

Model

WST1181

Working Temperature

-40℃～+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

50kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.

Service items


1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.

Communication with customers

1) Q: Connected power and press open/close button but vehicle barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, vehicle barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one
