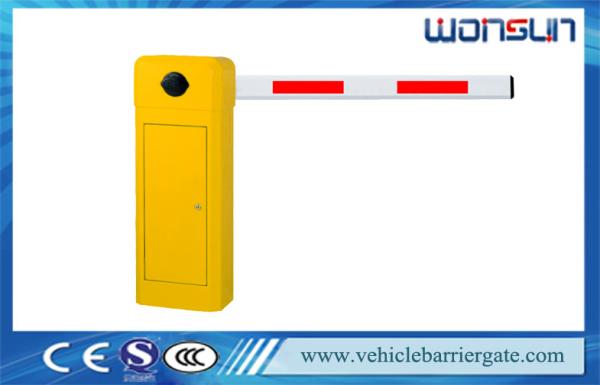

RS485 Transition Interface Traffic Barrier Gate For Shopping Parking Lot
RS485 Transition Interface Traffic Barrier Gate For Shopping Parking Lot
RS485 Transition Interface Traffic Barrier Gate For Shopping Parking Lot
RS485 Transition Interface Traffic Barrier Gate For Shopping Parking Lot
Specifications
Brand Name :
WONSUN
Model Number :
WST-1151
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Housing dimension :
320 * 280 * 935 mm
Housing Color :
Blue, Yellow, Orange
Housing material :
2mm cold roller steel plate
Operating temperatures :
-35 to 75°C
Power supply :
AC 220V / 110V
Max boom length :
6m
Description

Car Park Barriers With RS485 Transition Interface For Parking System

Car Park Barriers Quick Detail:

Car Park Barriers Name: Car park barriers
Car Park Barriers Size: 320*280*932 mm
Car Park Barriers Operation time: 1s, 1.8s, 3s, 6s, optional
Car Park Barriers Arm type: Straight arm, folding arm, fence arm, optional
Car Park Barriers Arm Length: Max 6 meters with aluminum alloy

Car Park Barriers Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST11521

90-degree, Articulated boom

5m

6 seconds

WST11522

90-degree, Articulated boom

3m

3 seconds

WST11561

180-degree, Articulated boom

5m

6 seconds

WST11562

180-degree, Articulated boom

3m

3 seconds














Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers Car Park Barriers

Car Park Barriers Functions & Features

1) Car Park Barriers Manual release
2) Car Park Barriers Boom backtrack function: the boom will rise if it hits something when failing
3) Car Park Barriers Infrared photocell design: for avoiding the crash when the boom falls, to prevent the vehicles from being pressed
4) Both external and internal loop detectors are supported
5) “Open”,” close’” and “stop” control interfaces


Car Park Barriers Specifications

Car Park Barriers Operation time1s, 1.6s, 1.8s, 3s, 6s. Customized
Car Park Barriers Arm TypeStraight Arm: Max 1-6 meters, Size 45×100mm aluminum alloy

Fence Arm: Two or three fence arms, Max 1-6 meters, aluminum alloy

Car Park Barriers Material

Galvanized plate or Cold roll plate, 2mm thickness sheet
3 years without rust, shedding and fading

Car Park Barriers Size932mm×320mm×280mm
Car Park Barriers G.W50 KG
Car Park Barriers DeliveryBy Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Car Park Barriers PaymentSample: full payment

Order: usually 40% advance deposit, balance before shipment


With WONSUN, your job gets easier.
We don’t just create “good” products that work pretty well. Our thinking is beyond the short term. We are conceiving, designing, and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative, that will improve your performance and enhance your skills; and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers

1) Q: Connected power and pressed open/close button but the car parking barrier gate no action.

A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the car parking barrier gate will move but even when it is in the right position, the motor still runs and does not stop.

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3 ) Q: When opening/closing, car parking barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when the arm at 90° vertical and 180° horizontal position


Contact information:
Sue Zhang
Skype: SueZhang729
Whatsapp:+86 158 7925 9831
Email:sue@wonsunbarrier.com
