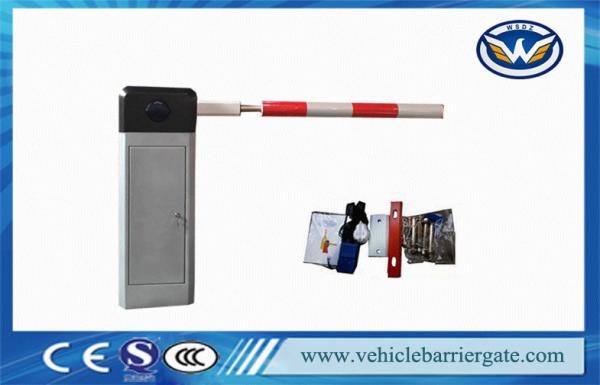

6s Remote Control Straight Boom Barrier Gate Operator Folding Type
6s Remote Control Straight Boom Barrier Gate Operator Folding Type
Specifications
Brand Name :
WONSUN
Model Number :
WSTT661
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
6s Remote Control Folding Type 8m Boom Straight Boom Barrier Gate
Item Number :
WSTP115
Material :
2mm Cold Rolled Steel Sheet
Remote Distance :
>30m
Color :
Grey or Black can be customized
Description

6s Remote Control Straight Boom Barrier Gate Operator Folding Type

Quick Detail:

1)Power:AC220C±10V,50/60HZ

2)Machine core:Automatic, 1st generation machine core

3)Operating Temperature:-45℃-60℃

4)Relative Humidity:≤95%, No Condensation

Running time 1 sec 3 sec 6 sec 3 sec 6 sec 3 sec 6 sec 3 sec 6 sec
Boom type Straight 90°folding 180°folding 2 fence 3 fence
Max boom length 3m
4.5m
 6m 3m 5m 3m 5m 4.5m 4m
Boom weight 3kg 4.5kg 5kg 6.5kg 8kg 9kg 11kg 7kg 7.5kg

Operation time:0.6s, 1s, 1.8s, 3s,4s,6s. Customized

Arm Type:Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy

Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy

Material:Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Size:320*280*935 mm

Spring And Bearing:Heat Treatment: more durable, more than 5 million times through operation

testing

Rating Power:120W

6s Remote Control Straight Boom Barrier Gate Operator Folding Type

Communication with customers

1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or

spin

bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant

or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
