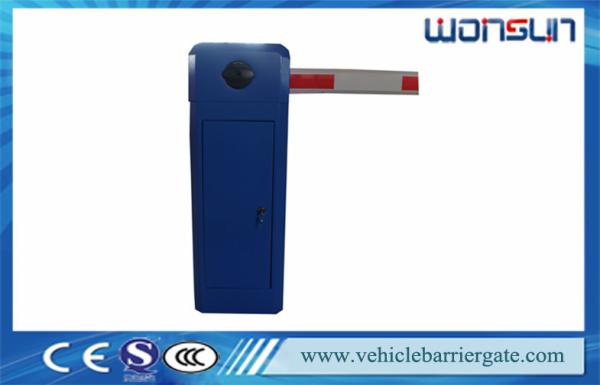

1 meter to 6 meters Car Park Barrier Systems 4S For Parking Lot
1 meter to 6 meters Car Park Barrier Systems 4S For Parking Lot
1 meter to 6 meters Car Park Barrier Systems 4S For Parking Lot
1 meter to 6 meters Car Park Barrier Systems 4S For Parking Lot
Specifications
Brand Name :
WONSUN
Model Number :
DZTP-139-B
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
1 meter to 6 meters Automatic Boom Barrier 4S For Parking Lot
Working Temperature :
-20℃~+85℃
Voltage :
220V±10%, 110V±10%, 50/60HZ
Material :
3 years without rust, shedding and fading
Mode of communication :
RS485
Theoretical Weight :
50 kg/set
Thickness :
2MM
Description

1 meter to 6 meters Car Park Barrier Systems 4S For Parking Lot

What is the davantages of Wonsun barriers?

1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3)Three control buttons:for boom raising, falling and pausing.

4)Boom backtrack function:the boom will rise if hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"open","close" and "stop" controlling interfaces.

8)RS-485 communication serial interface(optional)

9)Traffic light signal connection device: red light for stop,green light for pass.

10)Remote control and wire control for selection.



Model Selection and Differences

Boom type Boom Length(L) Diameter of the spring(mm) Note
Straight boom 6M≥L≥5M 5.5/4.5
5M≥L≥4.5M 5.5 Dispatching 4.5
4.5M≥L≥3M 4.5 Dispatching 4.5
Straight boom adhesive tape 5M≥L≥4M 4.5M≥L≥3M 5.5/4.5 Dispatching 4.5
4M≥L≥3M 3.5M≥L≥3M 4.5 Dispatching 4.5
Folding boom 6M≥L≥5M 6.5/4.5
5M≥L≥4M 5.5/4.5
4M≥L≥3M 4.5
Two fence boom 5M≥L≥4M 6.5/5.5
Fence boom 4M≥L≥3M 5.5/4.5
Three fence boom 4M≥L≥3M 6.5/5.5
3M≥L≥2M 5.5/4.5


Specifications

Model

DZTP-139-B

Working Temperature

-40℃～+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP54



Advanced Features:


1)clutch key can be used to open the clutch when power off.
2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.


Communication with customers

1) Q: Connected power and press open/close button but traffic barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3) Q: Motor running but traffic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position


Why choose us?

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
