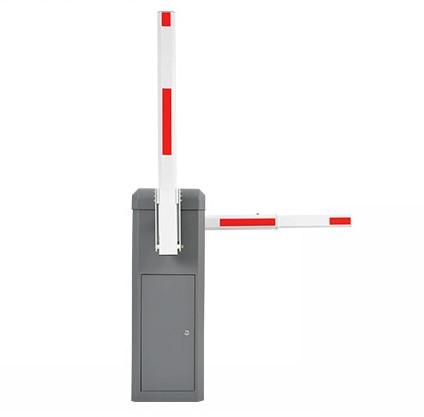

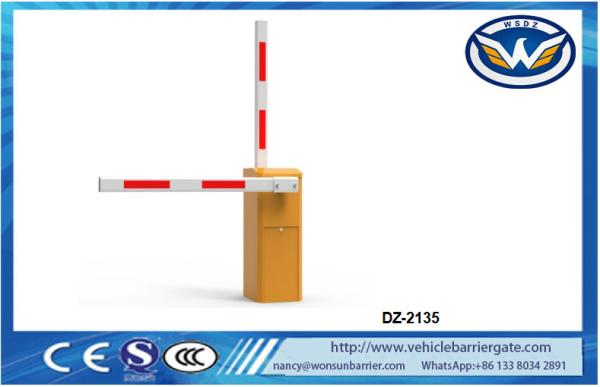

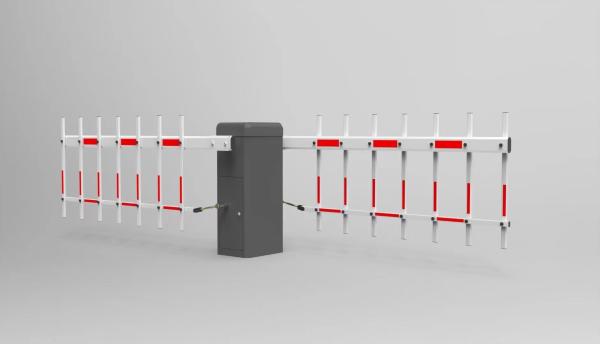

2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier
Specifications
Brand Name :
WONSUN
Model Number :
DZ-2135
Certification :
CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
$419/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 Set/Sets per Month
Delivery Time :
5-8 work day
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Name :
2 Motors Automatic Boom Barrier
Boom Length :
1M - 6M
OEM/ODM :
Supported
Relative Humidity :
≥90%
Features :
Heavy duty, swing out, remote control
Working Temperature :
-35°C to +85°C
Description

High Quality Low Consumption 2 Motors Automatic Car Parking Barrier 24VDC Brushless Motor Boom Barrier With Two 6M Arm

Car Park Barrier Specification:

Working temperature(motor): -30℃~+70℃
Rated voltage: DC24V
Running speed: 2.5s-6s
Rated power: 150W
Remote control distance: ≤100M(in the open place)
Max length of arm: 6M straight arm or telescopic arm


Car Park Barrier Advantages:

1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install module)

2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier2 Motors Automatic Car Parking Barrier 6M Arm 24VDC Brushless Motor Boom Barrier

Barrier arm balance adjustment

1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.

2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make

sure the arm open and close in stable.

3,For the barrier gate with double springs,please adjust the two springs simultaneously.

4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means

spring is too tight, loose a little. Close arm

Packing List

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board 1 piece
Mounting batten 2 piece Fixing the case
Expansion bolt M12*150 4 unit Fixing the case
Case Key 2 unit
Remote controller 2 unit
Instruction 1 piece

Function setting parameter table

Menu code Parameter Scale Parameter name Default Unit Remark
H00-00 25-95 Open speed adjustment 40

Corresponding PWM duty cycle

25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40

Corresponding PWM duty cycle

25%-95%, step size is 1
H00-02 5-40

Open in place

decelerate angle

 35

The larger the angle value, the less

likely it is to shake the arm

when it is in place.
H00-03 5-40

Close in place decelerate

angle

 35

The larger the angle value, the less

likely it is to shake the arm

when it is in place.
H00-04 1-20 Open accelerate adjustment 1 ms

The smaller the number, the faster

the speed
H00-05 1-20 Close accelerate adjustment 8 ms

The smaller the number, the faster

the speed

Electrical installation, wiring diagram

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,

just connect the 220V power supply and the protective ground wire to work.

2. Traffic light interface: 2A 24V voltage traffic light use.

3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation

output can be connected.

4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to

connect the switch signal output by the ground sensor.

Product Maintenance

10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery
exhausting,extreme weathers.

Our Services

Service for free:
1. One year free service is supplied(not including the arm and remote)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
