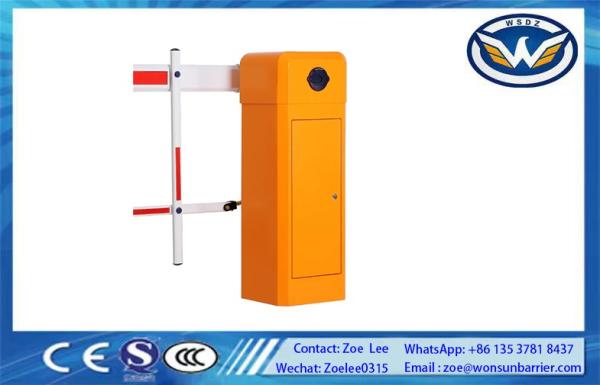

Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate
Specifications
Brand Name :
WONSUN
Model Number :
WSTP-115
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Working Voltage :
AC 220V/110V±10%, 50/60HZ
Time for Up/Down :
0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Boom length :
6m Max
Color :
Yellow, Blue, Red,White, grey or customized
Waterproof :
IP55
Certifiacte :
CE
Arm type :
straight, folding, fencing
Working temperature :
-50℃~85℃
Material :
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading
Operation times :
more than 5 million times through operation testing
Description

Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate

Quick Details:

WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure.High precision, high consistency, and standardization. And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat,small penetration, precise limit, etc., using a digital signal processor(DSP) As the control core, it can realize more complex algorithms, realize network and intelligence,(IPM) An internal integrated drive circuit can detect faults and display fault codes t quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and fall operation more stable usingsolar charging applications. It is suitable for unmanned occasions such as railway crossings, fire passages, oil stations,mine tunnels. etc. without electricity, and fully realizes automatic operation control.

WSTP-115 Car parking Barrier Gate Functions:

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)

220V AC Electric Boom Barrier Parking System Automatic Barrier Gate
Model WSTP-115
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading
Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
 Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection
Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Learning Remote control

The remote control using special IC learning code remote controller, 418MHz
wireless frequency, strong anti-interference, long remote control distance, that can up
to 100meters in good weather, use easily and durable. The receiver of learning code
remote control can store 16 different remote control codes, and support unlimited
number of same code remote control. The external receiver learned the remote control
within 5 seconds when power on,press the open/close key at the same time to
complete the learning, and reset to continue learn when not complete. If repeat the
learning, open the external receiver shell, there is a white button on circuit board, hold
down 15 seconds to delete the remote control code, continue to learn or press the
white button to learn.

Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate

Intelligent CE Automatic Boom Barrier Low Noise Entrance Barrier Gate

FAQ

1-Is there any loop detector or pressure sensor on it?

Yes,There are loop detector and pressure sensor together with the stanadard advertising barrier gate.

2-How long is the guarantee and after sale service?

We have one-year quality guarantee, well tranied and passional sales & aftersale services can be provided.

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, 3-10 working days longer.

4-How about the payment terms?

TT,western union, paypal and so on

5-How do you ship the goods and how long does it take?

As our products are heavy-duty and in big volume, we suggest shipping by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.

6- How do you pack the vehicle barrier gates?

We normally pack them with a hardcard box inside and there is a wooden crate package outside.
