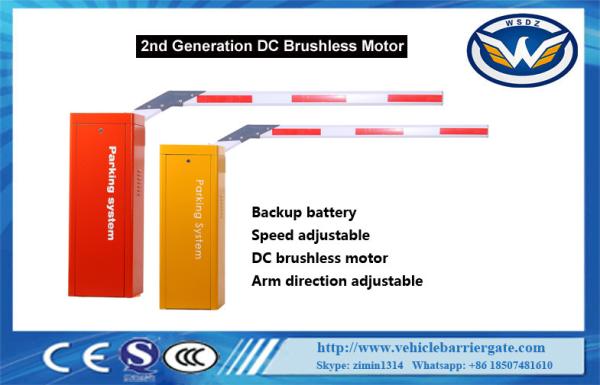

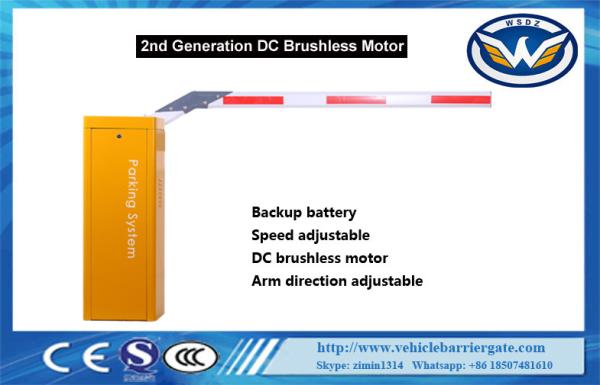

Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Curved Arm Automatic Boom Barrier With Rfid / DC Motor
Specifications
Brand Name :
WONSUN
Model Number :
DZ-130
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Color :
Gray, yellow,, red
Speed :
1.5s to 6s adjustable
Direction :
Left or right changeable
Certificate :
CE
Working voltage :
DC24V/110V/220V AC
Product name :
Automatic Boom Barrier With rfid DC Motor Automatic Barrier With New Curved Arm
Description

Automatic Boom Barrier With rfid/ DC Motor Automatic Barrier With New Curved Arm

Contact keira to get barrier videos and pictures!
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610

Packing List

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board 1 piece
Mounting batten 2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key 2 unit
Remote controller 2 unit
Instruction 1 piece

Technical parameters

4.1 Working temperature(motor): -35℃~+85℃

4.2 Rated voltage:DC24V

4.3 Running speed:1.5s-8s

4.4 Rated current:8.58A

4.5 Rated power:140W

4.6 No-load speed:1850rpm

4.7 Rated speed:1400rpm

4.8 Output Power:56.8N.m

4.9 Relative humidity:≤90%

4.10 Remote control distance:≤100M(in the open place)

4.11 IP Degree:IP44

4.12 Max length of arm:6M

Features

3.1 The running speed can be adjusted from 1.5s to 8s

3.2 Can be quickly interchanged

3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

3.4 Curved crank arm three- link movement structure, the operation is stable

3.5 Wireless remote control control open/close

3.6 Auto reverse function(force adjustable)

3.7 Infrared photocells connector is available

3.8 Loop detector connector is available.

3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

3.10 Connector for traffic light(AC220V,power less than 40W)

3.11 Offering dry contact signal for car parking system(COM,NC,NO)

3.12Auto-delay when closing(adjustable)

3.13 RS485 or CAN network communication interface(no need to install module)

3.14 Counting interface

3.15 24V backup battery interface(Can be charged by using solar energy)


RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.

Service Items

9.1 One year’s free servicing is supplied(not including the arm);

9.2 Lifetime charged servicing is offered;

9.3 Technology servicing is supplied.

The following situations are charged for servicing(or changing):

9.1Broken by the wrong installation.

9.2Broken by improper voltage.

9.3The surfaces of the system destroyed by wrong installation or use.

9.4Broken by natural disaster.

9.5Overdue.

9.6Servicing items out of our promises.
