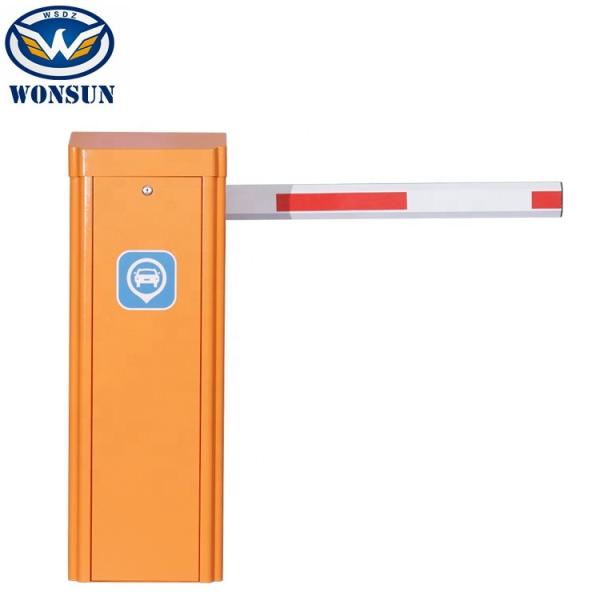

Automatic Waterproof Servo Motor Vehicle Barrier Gate With CE Certificate
Automatic Waterproof Servo Motor Vehicle Barrier Gate With CE Certificate
Specifications
Brand Name :
WONSUN
Model Number :
DZ-890
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Working Voltage :
DC24V
Time for Up/Down :
0.5s, 0.6s, 0.9s, 3s, 6s
Boom length :
6m Max
Color :
Blue, Red,White, grey or customized
Waterproof :
IP55
Certifiacte :
CE
Arm type :
straight, folding, fencing
Working temperature :
-50℃~85℃
Description

Automatic waterproof Servo motor Vehicle Barrier Gate with CE certificate

Quick Details:

WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure.High precision, high consistency, and standardization. And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat,small penetration, precise limit, etc., using a digital signal processor(DSP) As the control core, it can realize more complex algorithms, realize network and intelligence,(IPM) An internal integrated drive circuit can detect faults and display fault codes t quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and fall operation more stable usingsolar charging applications. It is suitable for unmanned occasions such as railway crossings, fire passages, oil stations,mine tunnels. etc. without electricity, and fully realizes automatic operation control.

Technical Data

Working Temperature -50℃~+85℃
Power Supply 24/100/240VAC, 50/60Hz
Open/close Speed 0.9sec to 6sec (adjustable)
Rated Power 200W
Driving Method Servo motor
Humidity <90%
Remote Control Distance <100m(open, sunny weather)
Protection Grade IP55
Motor No-load Speed 300r/min
Max Boom Length 1-6m

DZ-Y890 Pro Barrier Gate Functions:

1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)

Type Length and Operating Speed Parameters of Bar

Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M

Learning Remote control

The remote control using special IC learning code remote controller, 418MHz
wireless frequency, strong anti-interference, long remote control distance, that can up
to 100meters in good weather, use easily and durable. The receiver of learning code
remote control can store 16 different remote control codes, and support unlimited
number of same code remote control. The external receiver learned the remote control
within 5 seconds when power on,press the open/close key at the same time to
complete the learning, and reset to continue learn when not complete. If repeat the
learning, open the external receiver shell, there is a white button on circuit board, hold
down 15 seconds to delete the remote control code, continue to learn or press the
white button to learn.

Automatic Waterproof Servo Motor Vehicle Barrier Gate With CE Certificate

Automatic Waterproof Servo Motor Vehicle Barrier Gate With CE Certificate

FAQ

1-Is there any loop detector or pressure sensor on it?

Yes,There are loop detector and pressure sensor together with the stanadard advertising barrier gate.

2-How long is the guarantee and after sale service?

We have one-year quality guarantee, well tranied and passional sales & aftersale services can be provided.

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, 3-10 working days longer.

4-How about the payment terms?

TT,western union, paypal and so on

5-How do you ship the goods and how long does it take?

As our products are heavy-duty and in big volume, we suggest shipping by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.

6- How do you pack the vehicle barrier gates?

We normally pack them with a hardcard box inside and there is a wooden crate package outside.
