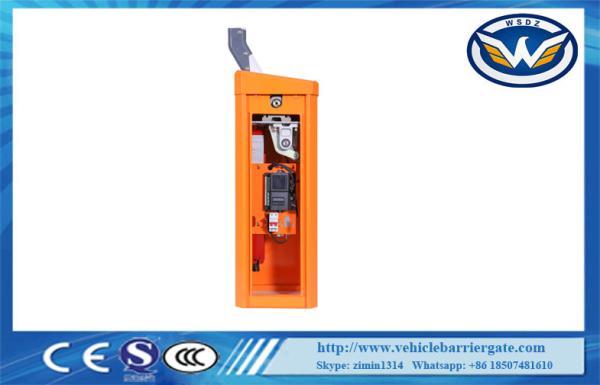

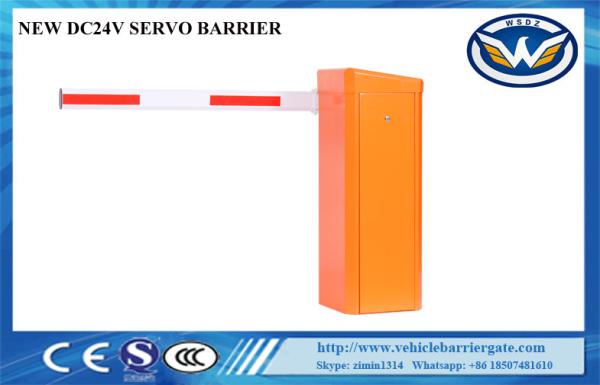

High Speed 0.9s Servo Motor 24V DC Motor Car Park Barriers Manufacturer

Functions and Features:

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
