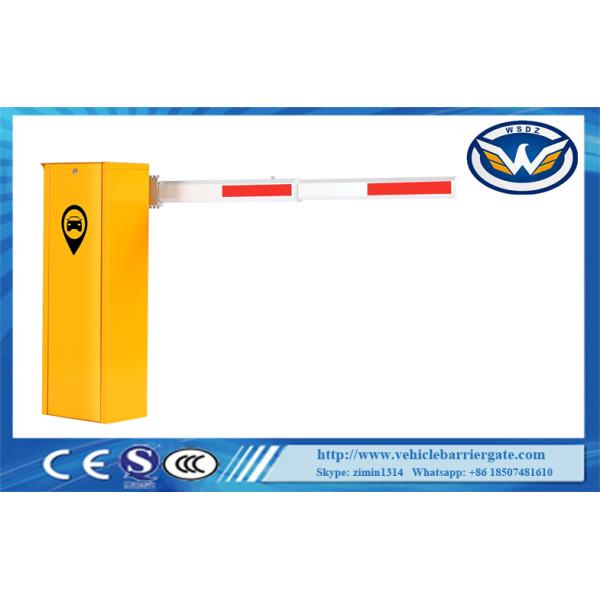

Low Cost Economical Vehicle Barrier Gate With DC Motor Brushless 140W
Low Cost Economical Vehicle Barrier Gate With DC Motor Brushless 140W
Specifications
Brand Name :
WONSUN
Model Number :
DZ-220
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Running speed :
1.5s-8s
Rated voltage :
DC24V
Advantages :
Speed adjustable, Hall Limit, backup battery supported
Rated power :
140W
Working temperature(motor) :
-35℃~+85℃
Product name :
Low Cost Economical Vehicle Barrier Gate With DC Motor Brushless 140W
Description

Low Cost Economical Vehicle Barrier Gate With DC Motor Brushless 140W


Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M


Features

The running speed can be adjusted from 1.5s to 8s
Open the barrier gate by motor wheel when power off ,automatically reset after power on
Curved crank arm three- link movement structure, the operation is stable
Wireless remote control control open/close
Auto reverse function(force adjustable)
Infrared photocells connector is available
Loop detector connector is available.
Well-integrated with car parking system equipment,with wire control(must be switch signal)
Connector for traffic light(AC220V,power less than 40W)
Offering dry contact signal for car parking system(COM,NC,NO)
Auto-delay when closing(adjustable)
RS485 or CAN network communication interface(no need to install module)
Counting interface
24V backup battery interface(Can be charged by using solar energy)



Electrical installation, wiring diagram

1 All the electrical connections are done before delivery and please do not change it randomly.The necessity
is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.

Product Maintenance

1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.


Arm length speed comparison table

Menu code Number Menu code name Defaults unit Remarks
H00-00 25-95 Open speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03 5-40 Close in place decelerate angle 35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04 1-20 Open accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-05 1-20 Close accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-06 1-30 Open in place angle 2 degree step size is 1
H00-07 1-30 Open in place angle 1 degree step size is 1
H00-08 7-13 Auto reverse force adjustment 10 A step size is 1
H00-09 0-90 Delay closing adjustment 0 Sec step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-10 10-50 Self-check speed adjustment 30 Corresponding PWM duty cycle 10%-50%, step size is 1
H00-11 0-2 Self-check mode 0 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory
H00-12 0-5 Self-lock force adjustment(Invalid) 3
H00-13 1-20 Motor deceleration time when paused 5 The larger the setting, the longer the pause time will take
H00-14 0-1 The default direction of operation after self-test 0 0:Closing,1:opening
H00-15 1-10 Number of pole pairs(Invalid) 4 Only used to correctly display motor speed values
H00-16 1-32 RS485communication address 1 Up to 32 slaves can be connected
H00-17 0-2 RS485communication rate 0 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again.
H00-18 0-1 If self-test after power is on 1 0:no self-test after power on,1:self-test after power on
H00-19 0-3 Manual self-test adjustment 2 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-20 0-15 Monitoring parameter setting index 7 7,operation times(ms):0~9000
8,Cumulative operation times:0`99999999
9,automatically operation times :0~99999999
10,Collision times:0~99999999
11,Closing in place times:0~99999999
12,Power-on time (minutes):0~99999999
13,power-on times:0~99999999
14,Input port status:Binary display
15,Error code:0~7
H00-21 0-3 reset 0 1:rest adjustment
H00-22 0-1 LED output mode 0 0:Do not flash alternately during operation；1:Allow flashing
