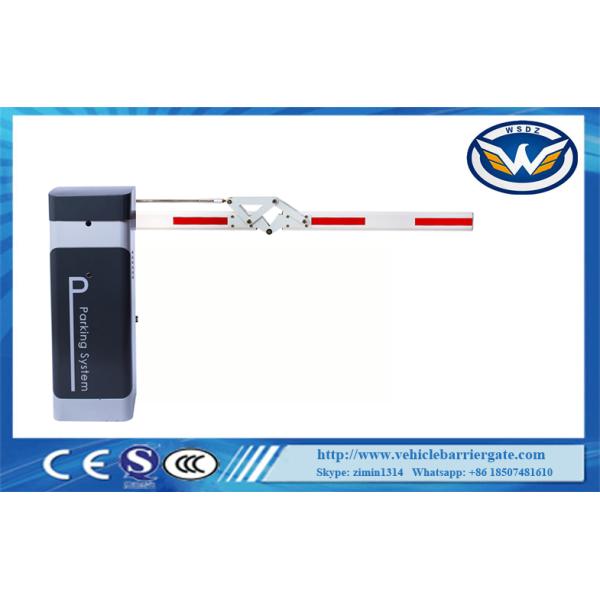

Speed Adjustable 1400rpm Intelligent Barrier Remote Control RFID Car Parking
Speed Adjustable 1400rpm Intelligent Barrier Remote Control RFID Car Parking
Specifications
Brand Name :
WONSUN
Model Number :
DZ-132
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Running speed :
1.8s-6s
Output Power :
56.8N.m
Advantages :
Speed adjustable, bi-direction LEFT or RIGHT, Hall Limit
Motor type :
DC brushless motor
Rated speed :
1400rpm
Product name :
Speed Adjustable 24V DC Brushless Motor Remote RFID Car Parking Intelligent Barrier
Description

Speed Adjustable 24V DC Brushless Motor Remote RFID Car Parking Folding Intelligent Barrier

DC brushless motor barrier adopts the latest mold design technology, mold die-casting manufacturing technology,

brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and

more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link

structure, and the landing rod is fast and stable. Easy maintenance and long service life .

Features

1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Connector for traffic light(AC220V,power less than 40W)
10 Offering dry contact signal for car parking system(COM,NC,NO)
11 Counting interface
12 24V backup battery interface(Can be charged by using solar energy)


Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M

Type Length and Operating Speed Parameters of Sluice Bar

Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M
4M>L≥3M 5S

Arm length speed comparison table

Menu code

Parameter

Arm length

 Open Close
H00-00 H00-02 H00-04 H00-01 H00-03 H00-05
Medium Octagonal arm 3m 1.5s(without rubber) 95 30 8 95 30 8
Medium Octagonal arm 3m 1.5s(with rubber) 95 25 8 95 25 8
Large Octagonal arm4.5m 3s(without rubber) 45 30 10 45 30 10
Large Octagonal arm 6m 5s(with rubber) 35 40 10 35 40 10
3m around arm 1.5s 95 25 8 95 25 8

(the parameter is based on the company’s arm)

FAQ

1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.

2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.

4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.

6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.

7-Can you do OEM service?

We offer below OEM services:

1) We can make custom design turnstile,or you tell us your requirements,we can make a design for you.

2) Can print your logo on turnstiles, can customize the retail box packing and other things.


Speed Adjustable 1400rpm Intelligent Barrier Remote Control RFID Car Parking


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest,

please contact me freely.

Speed Adjustable 24V DC Brushless Motor Remote RFID Car Parking Folding Intelligent Barrier
