OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor
Specifications
Brand Name :
WONSUN
Model Number :
DZ-130 vehicle barrier gate
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability :
1000 Sets/Month
Delivery Time :
3-7 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Running speed :
1.5s-8s
Power Supply :
DC24V
Backup battery :
yes
CE ISO :
YES
ARM length :
6m straight arm
Product name :
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC brushless Motor 5 millions Operation Time
Description

OEM Two Fence Boom Vehicle Barrier Gate With 24V DC brushless Motor 5 millions Operation Time



Vehicle barrier gate specifications:

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated power:140W
5 Relative humidity:≤90%
6 Remote control distance:≤100M(in the open place)
7 IP Degree:IP44
8 Max length of arm:6M straight arm



Vehicle Barrier Gate Features:

1 The running speed can be adjusted from 1.5s to 8s

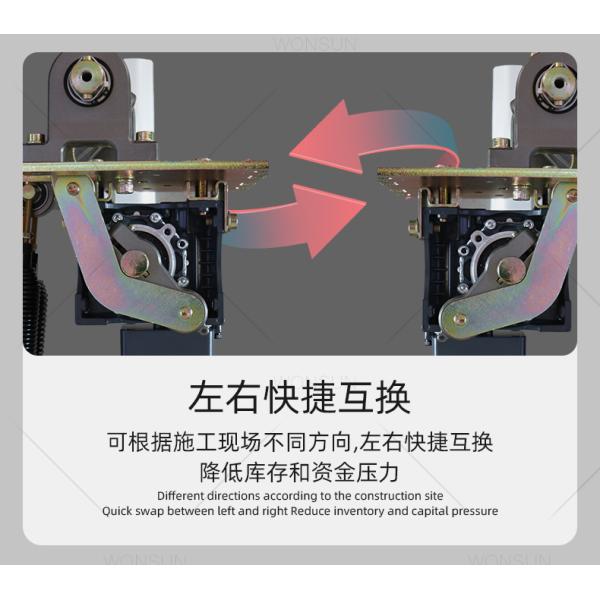

2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)



Function setting parameter table

Menu code Parameter Name Parameter scale Default Unit Remark
H00-00 Open speed adjustment 25-95 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 Close speed adjustment 25-95 40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 Open in place decelerate angle 5-40 35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03 Close in place decelerate angle 5-40 35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04 Open accelerate adjustment 1-20 1 ms The smaller the number, the faster the speed
H00-05 Close accelerate adjustment 1-20 8 ms The smaller the number, the faster the speed
H00-06 Open in place angle 1-30 1 degree step size is 1



Arm length speed comparison table

Menu code
Parameter
Arm length

 Open Close
H00-00 H00-02 H00-04 H00-01 H00-03 H00-05
Medium Octagonal arm 3m 1.5s(without rubber) 95 30 8 95 30 8
Medium Octagonal arm 3m 1.5s(with rubber) 95 25 8 95 25 8
Large Octagonal arm4.5m 3s(without rubber) 45 30 10 45 30 10
Large Octagonal arm 6m 5s(with rubber) 35 40 10 35 40 10
3m around arm 1.5s 95 25 8 95 25 8

(the parameter is based on the company’s arm)


Product Maintenance

10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.


Packing List

Name Specification Qty Unit Note
Hexagon screw M12*70 2 Piece Fixing the boom
Boom press board 1 piece
Mounting batten 2 piece Fixing the case
Expansion bolt M16*150 4 unit Fixing the case
Case Key 2 unit
Remote controller 2 unit
Instruction 1 piece



RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
