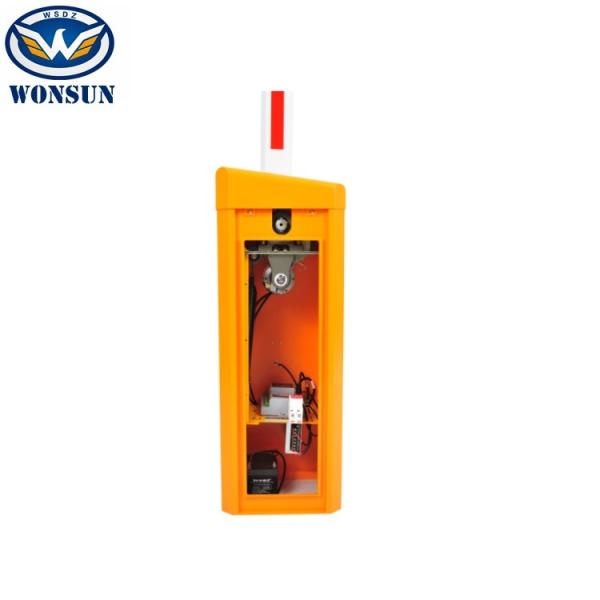

DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station
Specifications
Brand Name :
WONSUN
Model Number :
DZ-1380
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
$543/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 set/sets per month
Packaging Details :
Packed in bubble wrap firstly,and then reinforced with carton for outer packing
Name :
DC Servo motor high speed barrier gate
OEM/ODM :
Supported
Boom length :
3-6meters;2.5meters
Features :
Heavy duty, swing out, remote control
Working temperature :
-35°C to +65°C
Power supply :
24/100/240VAC,50/60HZ
Relative power :
200W;400W
Description

DC Servo motor high speed barrier gate with Arm Direction Can Be Quickly Interchanged use in traffic barrier

Model No. SF-DZ-1380
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 1030*380*450mm
Net Weight 48KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply 24/100/240VAC,50/60HZ
Related Power 200W;400W
Working Temperature -35°C to +65°C
Remote control system ≤100m(open,sunny weather)
MCBF 5million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Protection class IP44
Beam Length 3~6M;2.5M
Opening/Close Time 0.9sec-8sec;0.6sec-6sec(Adjustable)

Functions and Features:
1.The operation speed can be adjustable 0.9sec-8sec;0.6sec-6sec (Adjustable)

2.Arm direction left and right can change easily

3.When power off ,manual open and close arm,and lock itself

4.Wireless remote

5.Phonecell IO port output

6.Open and close control input

7.Lop detector anti-collision IO output

8.12V Traffic light output

9.Open and close limit signal output

11.Counting(fleet) input RS485 communication input

12.24V battery input port

13.Delay close arm function (1-300 sec.A djustable)

14.Open and close arm speed deceleration fuction

15.One-key setting arm type with corresponding speed

16.Arm auto reverse fuction (addictional sensors and alarms are required )

17.RS485 communication input

DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station

DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station

DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station​

DC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus StationDC Servo Motor High Speed Barrier Gate For Expressway Toll Sation Airpot Bus Station

Our Services

Service for free:
1. One year free service is supplied(not including the arm and remote)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
